Telescopes > Pro Astrograph > Omegon Telescope Pro Astrograph 154/600 OTA
Product no.: 54739

Telescope Pro Astrograph 154/600 OTA

RRP: $ 697.90 Our price:
$ 689.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product can be shipped as of 15.01.2023 + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

More about the series Pro Astrograph...

Omegon f/4 astrograph - for unforgettable astronomy photos
Which other type of telescope can be used to create a beautiful image with so little effort? With Omegon astrographs this is easier than with 'ordinary' telescopes. Why? The answer is obvious - because an aperture ratio of f/4 means a big light output and consequently shorter exposure times. Immerse yourself in the world of deep sky photography. Admire faint galaxies or details in hydrogen nebulae. The Omegon astrograph sets a new benchmark for your astronomy photos.

The advantages in a nutshell

  • f/4 astrograph - a telescope with ultra-fast aperture ratio for short exposures
  • suitable to go on medium mountings due to its short overall length
  • wide field of view for extended objects - approx. 24mm is illuminated
  • 94% reflection parabolic main mirror for bright images
  • large secondary mirror - good illumination for DSLR cameras
  • robust 2" Crayford focuser with 1:10 reduction and 1.25" reducer
  • faster cool-down for getting started observing quicker - main mirror fan

94% reflection f/4 main mirror
Astrographs are suitable for visual observing, but only show their full potential when used for astrophotography. Their f/4 aperture means they are among the 'fastest' Newtonian telescopes around, allowing you to take shorter exposure images.
The secondary mirror and the parabolic BK7 main mirror are 94% reflective, providing brighter and higher contrast images. One can see a visible improvement when compared to a 'normal' mirror which is around 88% reflective.

No shadows, only light - large secondary mirror
Attach your DSLR camera or a modern CCD camera to the telescope and enjoy impressive illumination over a wide field of view. No shadowing is noticeable thanks to the particularly large secondary mirror (see also below). Observing with 2" wide-field eyepieces is now perfect.

Less mistakes - more fun with the photography
The particularly short OTA length and focal length means the telescope is compact - the astrograph is about 20% shorter as compared to an f/5 system. This means you can also use this OTA's excellent optics on a medium mount, saving yourself the expense and clumsiness of a heavier mount.
Another advantage is that the astrograph is perfect for extended deep sky objects thanks to its shorter focal length. This system is also more tolerant of small tracking errors than a telescope with a longer focal length. You will achieve some astounding astrophotography with even just a little effort.

2" Crayford focuser with 1:10 fine focusing
The Omegon V-Power focuser provides precision focusing for all astronomical objects. The 1:10 reduction, sturdy ball-bearings and guide rail make the focuser stable and easy-to-use. Its optimized design means the focuser can safely carry cameras weighing up to 5 kilograms without any slipping.

  • extremely precise operation - the ball bearings and stainless steel guide rail mean the focuser tube runs smoothly and precisely
  • can carry heavy cameras and eyepieces - no slipping with up to 5kg loads
  • 1:10 reduction means precise focusing, includes a focus scale
  • anti-reflection baffles for high contrast
  • 2" to 1.25" reducer

Included in delivery and other important data

  • 6" astrograph OTA with 63mm secondary mirror
  • secondary mirror marking for optical alignment
  • tube clamps and 22cm Vixen-style prism rail
  • 2", 35mm extension tube
  • OTA length 580mm, OTA outer diameter 176mm

Specifications

Optics


Type
Reflector
Type of build
Newton
Aperture (mm)
154
Focal length (mm)
600
Aperture ratio (f/)
4
Resolving capacity
0,77
Limit value (mag)
12,7
Light gathering capacity
460
Max. useful magnification
300
Tube weight (kg)
5,75
Tube material
Steel
Tube length (mm)
580
Coating
Aluminium and silicon dioxide
tube diameter (mm)
176
Tube construction
Full tube

Reflector


Main mirror´s construction
parabolic
Secondary mirror obstruction
42
Secondary mirror diameter (mm)
63
Ventilation for central mirror
no
Primary mirror - Material
BK7
reflectivity
94

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2
Gear reduction
1:10 Fine movement

Mount


Type of build
OTA
Mounting type
no mount
GoTo control
no

Included accessories


Extension tubes
yes
Tube clamps
yes
Eyepiece adaptor
1,25" & 2"
Prism rail
Vixen-Style

General


Series
Pro Astrograph
Total weight (kg)
5,7

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
no
Astrophotography
yes
Sun
not recommended (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Recommended accessories

Telescope accessories > Barlow & Erecting Lenses (3)

Omegon 3x Barlow lens, achromatic, 1.25"

$ 49.90*
Telescope accessories > Transport & storage (4)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Other (8)

Omegon Radiant Finder with fastener

$ 49.90*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Media (1)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Maintenance & Cleaning (4)

Omegon 7-in-1 lens cleaning set

$ 19.90*

*All prices include VAT plus shipping costs.

Omegon Telescope Pro Astrograph 154/600 OTA
The compact Omegon f/4 astrograph is excellent for using short exposures to produce impressive wide-field astronomy photos.

Omegon Telescope Pro Astrograph 154/600 OTA

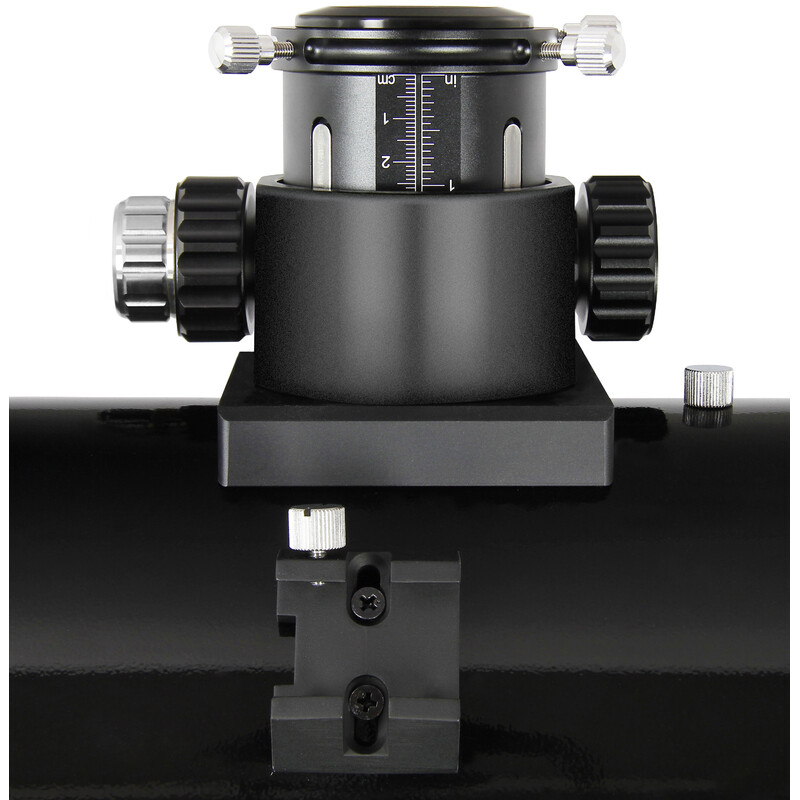

2" Crayford focuser with 1:10 reduction - CNC-machined, black anodised and with laser-engraved scale

Omegon Telescope Pro Astrograph 154/600 OTA
35mm extension tube

Omegon Telescope Pro Astrograph 154/600 OTA
Pleiaden (M45) taken by Carlos Malagon
Omegon Telescope Pro Astrograph 154/600 OTA
Andromeda (M31) taken by Carlos Malagon
