Product description

This telescope is also available, together with accessories, in a beginners set.

The Omegon AC 70/700 telescope is your first taste of the world of astronomy. Practical observing with it is so simple that it highly suitable for children and adults alike.


The instrument is simple to understand and is very quick to set up ,without any tools being required. Simply set it up, insert eyepiece and observe!

The Optics of the AC 70/700:

With its 70mm aperture, this refractor collects 100 times more light than the naked eye and substantially more light than a typical beginner telescope possessing an only slightly smaller aperture of 60mm. This means it also has a higher resolution and, with a maximum magnification of 140X, can already show you the larger surface features when observing planets such as Saturn, Jupiter and Mars. It is also very rewarding to observe the moon: One can beautifully observe the cratered landscape of the moon, which always looks different depending upon the moon's current phase. It is also interesting for nature watching in daylight - made possible by using an erecting lens or an Amici prism. Focusing takes place by means of a rack and pinion focus wheel at the focuser. This allows the image sharpness to always be precisely adjusted and to remain fixed during observing.

The optics are also highly suitable for use as a guide scope for astrophotography or guiding in conjunction with a larger telescope.

The advantages in a nutshell:

  • easy to set up in just a few minutes
  • collects 36% more light than a 60mm telescope
  • produces a very clear, high-contrast image
  • 1.25“ focuser for all standard eyepieces

The AZ-2 Mount:

This mount is very popular with beginners in astronomy as it is very simple to operate. The entire telescope is very easy to move around in both azimuth and elevation. For beginners, it has the advantage that they do not have to worry about first aligning the telescope before use. Setting up the telescope is hence very quick and straightforward: Simply erect the tripod and mount, attach the telescope to it, and you are ready to go! The fine adjusters can be locked in both axes so that objects remain in the field of view once found. The mount is attached to a height-adjustable aluminium tripod.

Included in delivery of the mount:

  • AZ-2 altazimuth mount
  • robust aluminium tripod (height-adjustable from 71cm to 121cm)
  • accessory tray

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page "Telescope ABC" beginners handbook with every telescope.

Our expert comment:

This telescope is quite suitable for the first fun exploration of the night sky. Observing the moon is an impressive experience even in a small instrument such as this. The mount also allows terrestrial observing. But you should not expect high performance from a telescope in this price bracket.

A note regarding magnification: Similar telescopes are advertised in many places with magnifications of over 300X or even 600X. Any telescope can theoretically reach these magnifications, but you will not be able to see anything - everything will be blurred! The maximum useful magnification is that at which objects can still just be sharply imaged.

This telescope in an excellent choice for children, but young people of over 10 years of age and adults will definitely get more pleasure out of a Newtonian telescope such as the Omegon 114/900 EQ-1.

(Dominik Schwarz)

It is a good idea to get some idea of how to orient yourself in the night sky by first reading some books on the subject. There are various books available which tell you how to get better acquainted with the night sky.

(Bernd Gährken)

Find more telescopes for astronomy beginners in our comprehensive buying guide. Telescopes for children and young people

Specifications

Optics


Type
Refractor
Type of build
Achromat
Aperture (mm)
70
Focal length (mm)
700
Aperture ratio (f/)
10
Resolving capacity
1,64
Limit value (mag)
11
Light gathering capacity
100
Max. useful magnification
140
Tube construction
Full tube

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
1,25"

Mount


Type of build
AZ-2
Mounting type
Azimuthal
GoTo control
no

Tripod


Height (cm)
67-119
Material
Aluminium
Type
Tripod

Included accessories


1.25'' eyepieces
Super 20mm, Super 10mm
Finder scope
Red dot finder
Barlow Lens
2x
Deviating optics
1.25", 90° star diagonal

General


Total weight (kg)
4
Series
Basic
Special recommendation
yes

Area of application


Moon & Planets
yes
Nebulae & galaxies
not recommended
Nature Observation
no
Astrophotography
no
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
yes
Advanced
no
Observatories
no

Recommended accessories

Telescope accessories > Eyepieces (13)

Omegon Advanced eyepiece case 32mm + 15.5mm + 25 Euro voucher

$ 199.00*
Telescope accessories > Filters (9)
Solar Filters

Omegon solar filter, 60-80mm

$ 19.90*
Telescope accessories > Prisms & Diagonal mirrors (3)
Amici prism

Omegon 1,25'' Amici Prism 90°

$ 169.00*
Telescope accessories > Transport & storage (3)
Carry case

Omegon carry case for 5" tubes/lenses

$ 99.00*
Telescope accessories > Other (6)
Barlow Lens

Omegon 1.25'', 2X, 3 Element Barlow eyepiece

$ 99.00*
Media (1)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Maintenance & Cleaning (4)

Omegon 7-in-1 lens cleaning set

$ 19.90*

*All prices include VAT plus shipping costs.

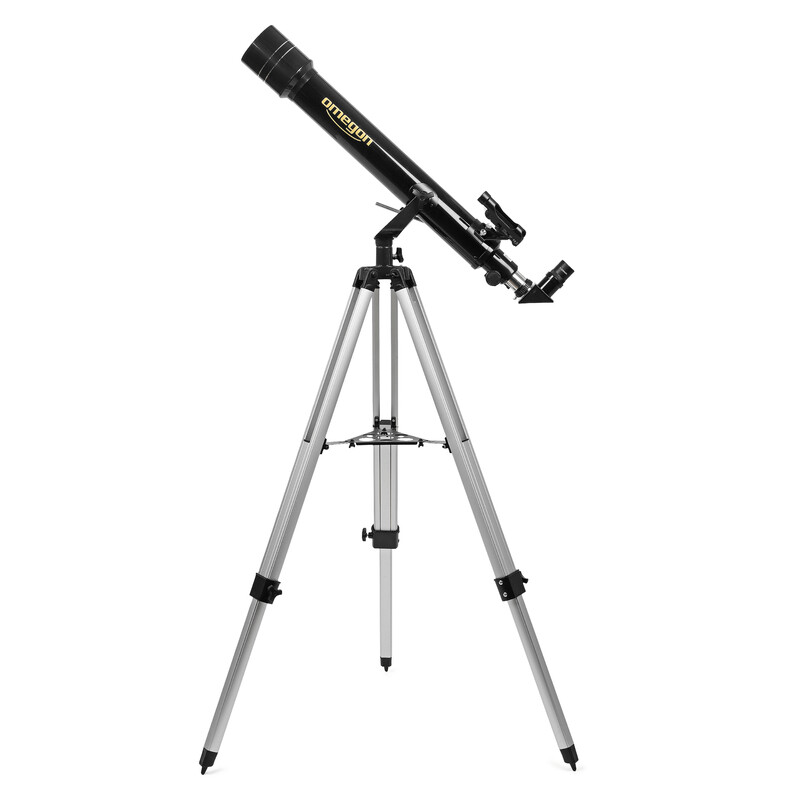

Omegon Telescope AC 70/700 AZ-2

Altazimuth mount. The height can be precisely adjusted via the fine adjustment.

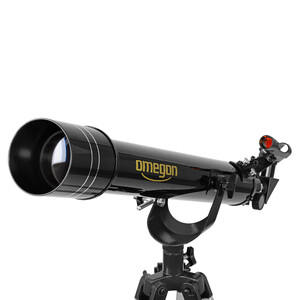

Omegon Telescope AC 70/700 AZ-2
Drawtube
Omegon Telescope AC 70/700 AZ-2

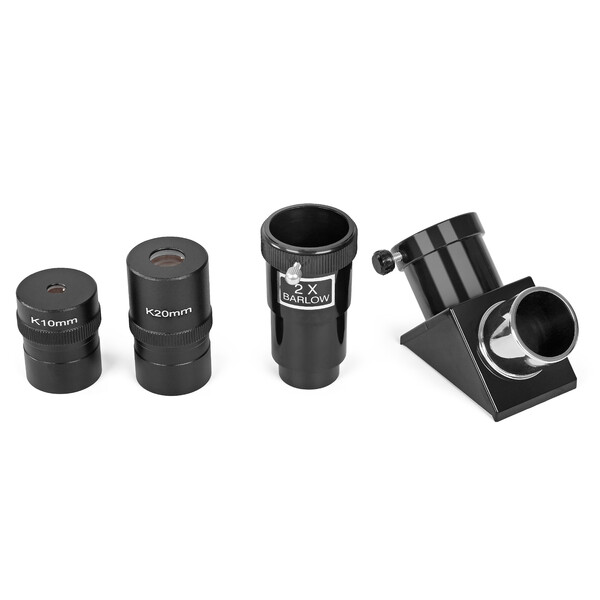

Included accessories (image similar)
