Telescopes > Omegon Apochromatic Refractor Pro APO DoubleED AP 40/180 OTA
Product no.: 85633

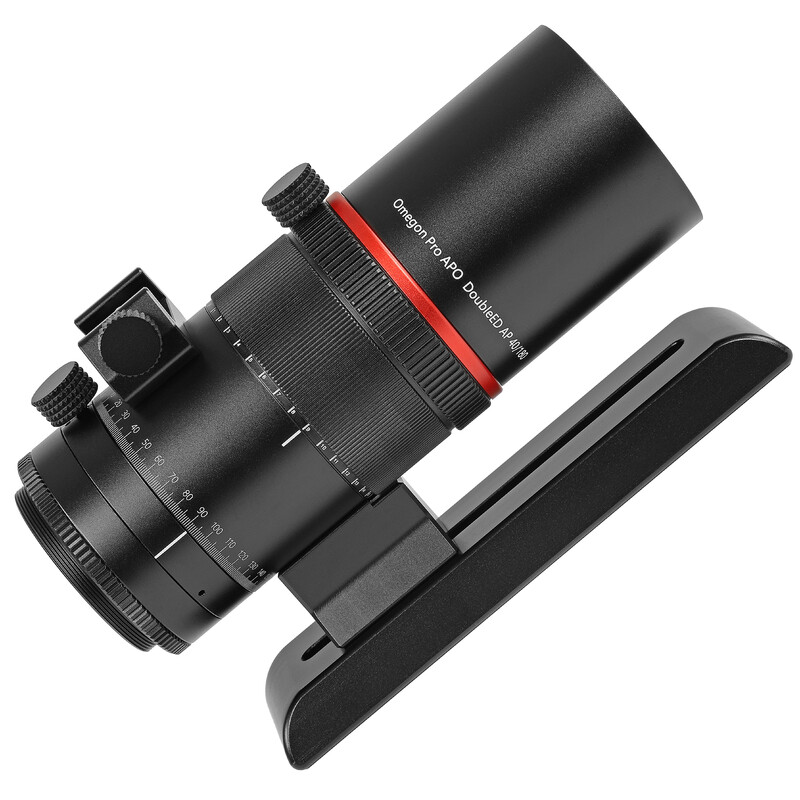

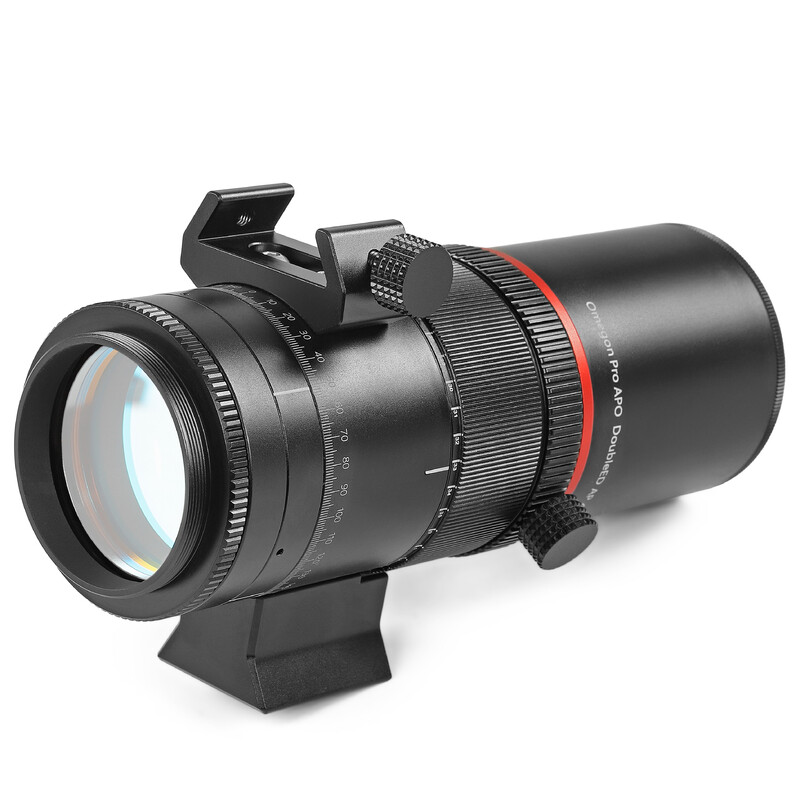

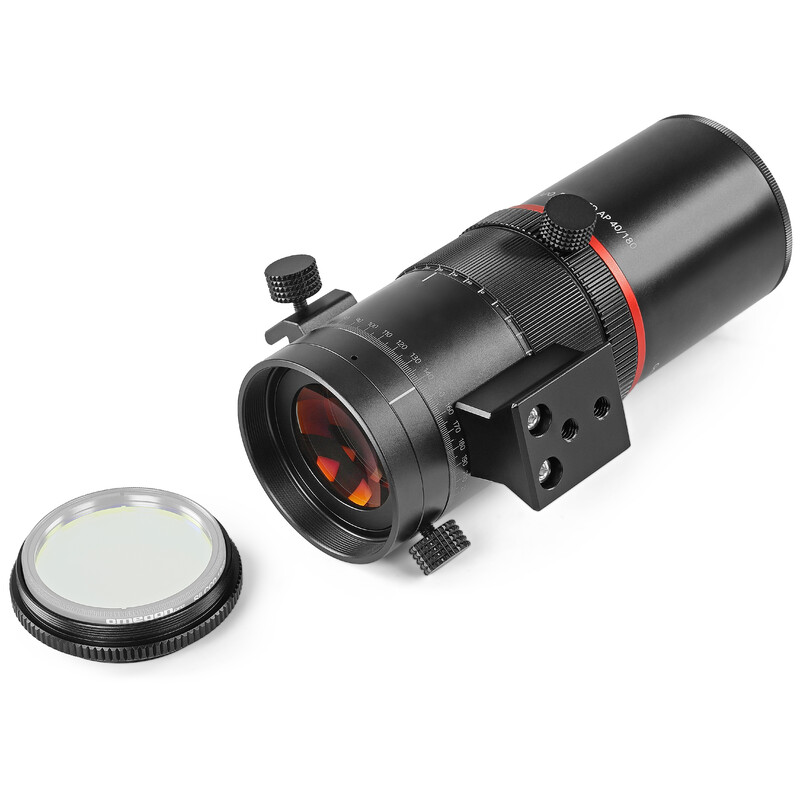

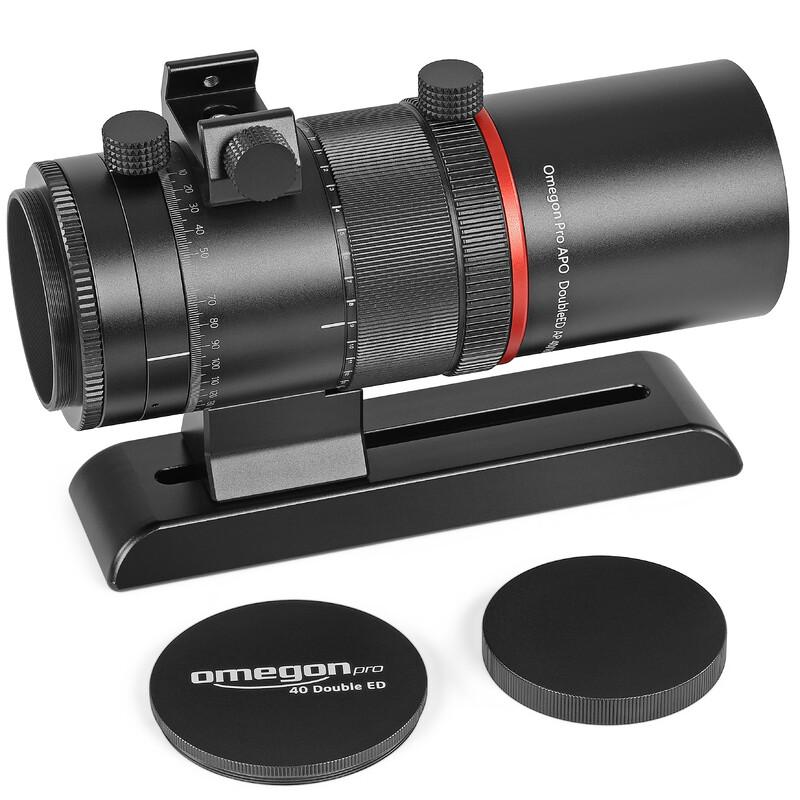

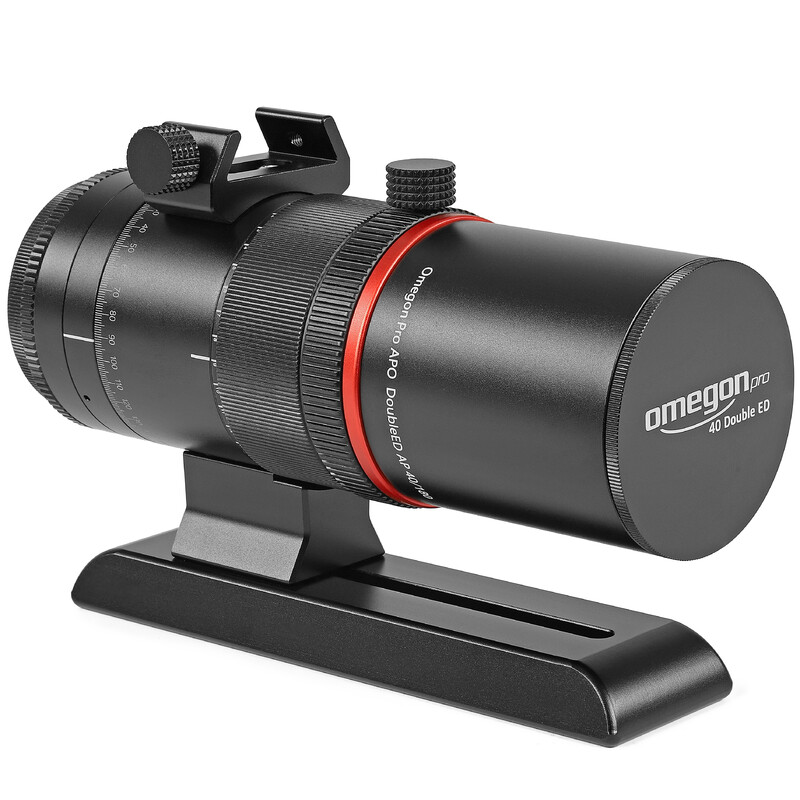

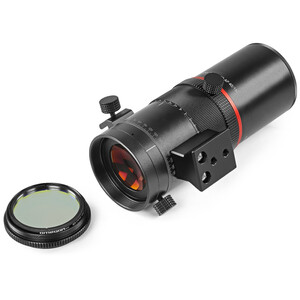

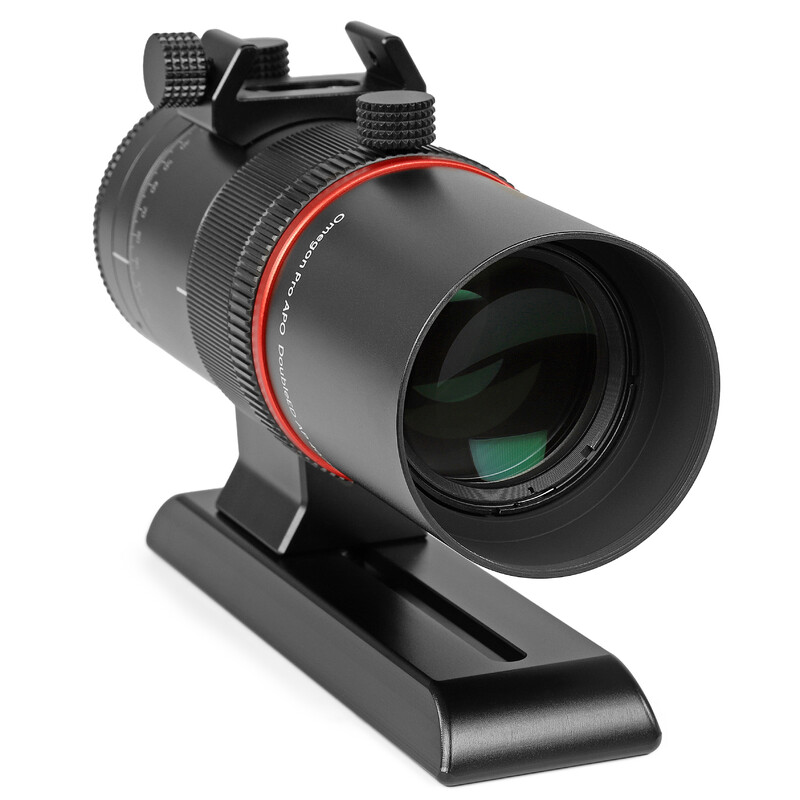

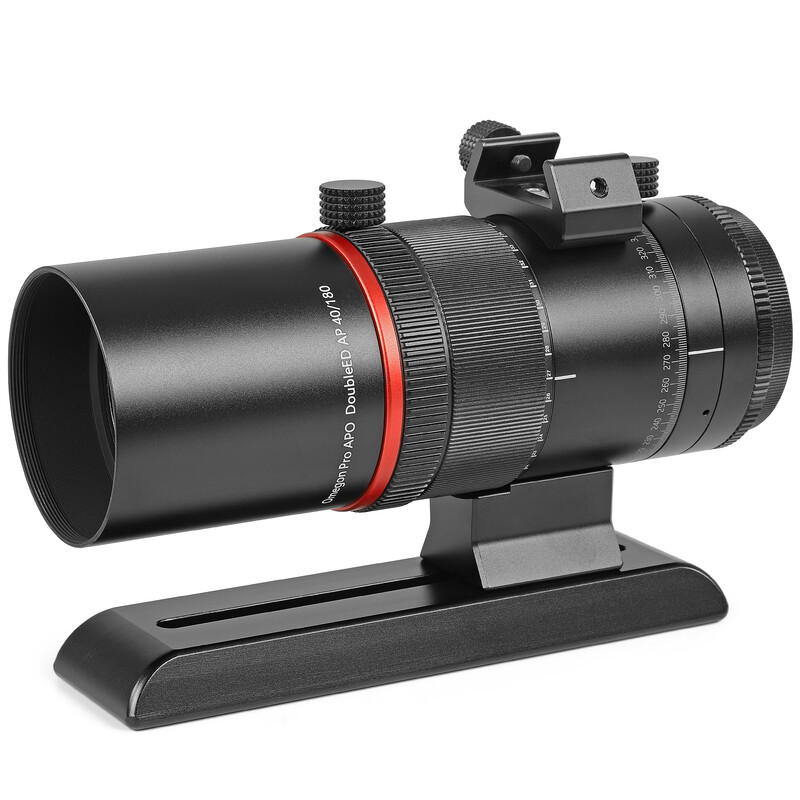

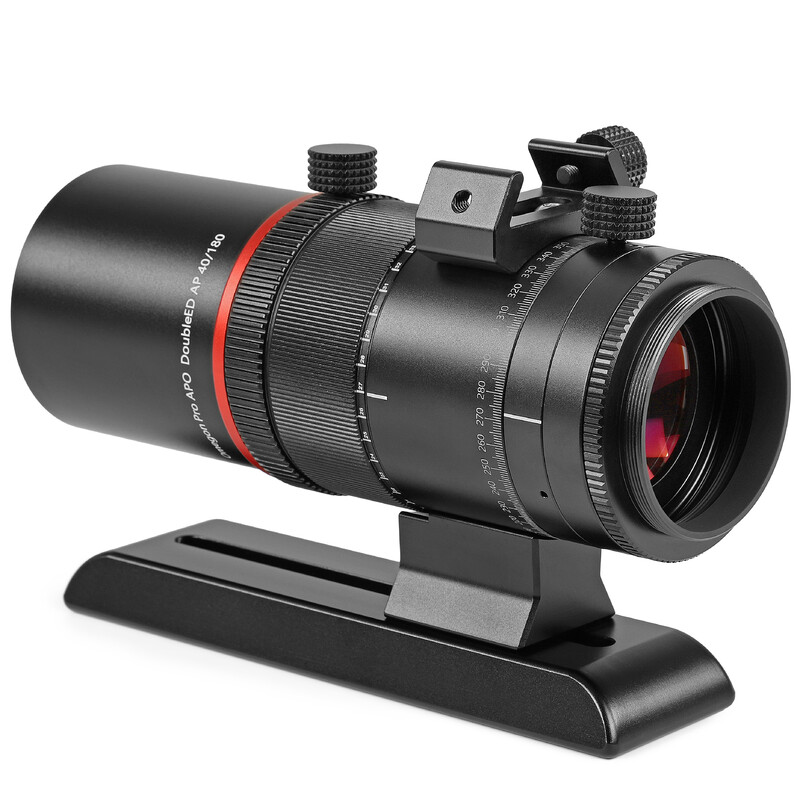

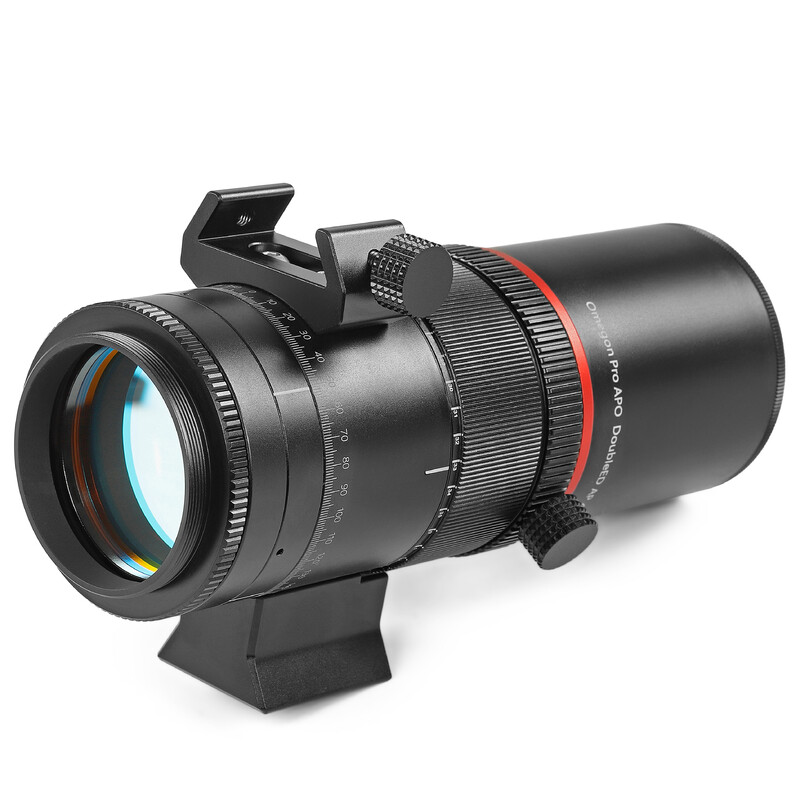

Apochromatic Refractor Pro APO DoubleED AP 40/180 OTA

$ 499.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
  • Four-lens high-performance apochromat for astrophotography
  • Two ED glass lenses for maximum image correction
  • Fast aperture ratio f/4.5

Product description

Better astrophotos that help you discover the sky in a new way.
What is it that drives astrophotographers time and again? It is the fascination of depicting the sky in its most beautiful colours and shapes. With this apochromat, you can do just that. The premium ED glass and a colour-pure image make for enjoyable observations with fine details that would not be possible with basic optics. Rediscover the sky.

The advantages at a glance:

  • 40 mm quadruplet ED apochromat with four lenses achieves apochromatic correction for fantastically clear, flat and colour-pure images.
  • Two lenses made of high-quality ED glass offer high sharpness despite a fast aperture ratio
  • Integrated corrector ensures a flat and illuminated field even for full-frame cameras.
  • Helical focuser: even larger and heavier cameras can be focused smoothly and with high precision

Four lenses for superior field correction

No more low-contrast images. The apochromatic shows what is truly possible: colour-pure and high-contrast astrophotographs. The reason for this is a sophisticated optical design with two premium ED lenses for a crystal-clear image. The lens elements have been treated with an effective multi-coating on all surfaces to prevent reflections. Look forward to photographs that will remain in your memory.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
40
Focal length (mm)
180
Aperture ratio (f/)
4,5
Resolving capacity
3,45
Limit value (mag)
9,8
Light gathering capacity
30
Max. useful magnification
80
lens design
Quadruplet
Tube weight (kg)
0,8
Tube length (mm)
168
Fully Corrected Field (mm)
44

Focuser


Type of build
Helical
Connecting thread (telescope side)
M48
Backfocus (mm)
55
Rotating
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Corrector
integrated
Prism rail
Vixen-Style
finder base
Vixen/Skywatcher Level
Tube clamps
yes

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, www.nimax.de
