Telescopes > Pro APO > Omegon Apochromatic refractor Pro APO AP 85/560 ED Triplet OTA
Product no.: 52026

Apochromatic refractor Pro APO AP 85/560 ED Triplet OTA

$ 1,890.00 Sale price:
$ 1,709.00 incl. VAT, plus shipping costs
too expensive?
on stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 02.02.2023!

Product description

More about the series Pro APO...

Portable sky cruiser: The brilliant 85mm apo with deluxe optics

Finally brilliant and sharp astrophotos: every astrophotographer’s dream comes true with this apochromat. The triplet air-gap objective lens with Japanese Ohara glass offers a clear image with sharp stars right up to the edge. You will enjoy ultra-sharp contrast even at high levels of magnification. With this master photographer in your toolkit, it'll be ready for action for every astrophotography assignment.

The highlights at a glance:

  • FPL-53 triplet lens: better contrast brings more sharpness and brilliance to your observation
  • You can look forward to images that are true to colour with outstanding contrast
  • 2” hybrid Crayford focuser with diagonal rack and pinion and 1:10 microfocus
  • 2"/1.25” reducer with filter thread
  • Aluminium carrying case

The lens: producing highest quality images

When you observe planets with this apochromat, it offers you nothing less than an absolutely awe-inspiring experience. Compared to most mirror systems you will discover more details with better contrast - planets will simply appear sharper. Of course that which applies to planets, applies also to star clusters or other deep sky objects.

The reason for this is one of the best optical systems that we are aware of, with which this refractor creates captivatingly beautiful and exclusive astrophotos.

The apo’s image definition is significantly better than that of reflectors because it lacks the central obstruction with its associated deterioration in the intensity distribution of the Airy disk.

The refractor is an unbeatable instrument, especially in low contrast conditions.

2” hybrid Crayford focuser with 1:10 microfocus

The 2” focuser is the right connection for your camera. The design is ingenious: a hybrid of a Crayford and a diagonal rack and pinion. This means: an entire 6kg load-bearing capacity but nonetheless smooth focusing, thanks to roller bearings it is simple to rotate to find the perfect point of focus. The focuser has a back focus of 175 mm and an adjustment range of 95 mm.

Dual speed 1:10 microfocus

Focusing on an object happens in two different ways: with the coarse adjustment knob and the 1:10 microfocus. With this fine adjustment knob the object can be brought considerably more accurately into focus. Every astrophotographer will recognise the problem: just as you think you’ve got the focus right you overshoot the target.

The microfocus is mechanically so precisely manufactured that it reacts to the slightest adjustment, enabling you to focus easily.

2” and 1.25” connection

The focuser has the usual 2” connection with a 1.25” reducer. With this you can connect any accessory from our range, such as eyepieces and adapters.

CNC tube for one of the best lenses

The tube of the Omega apo consists of a CNC-manufactured metal construction with a sophisticated anti-reflective system. The entire tube is lined with a black velvet-like fabric.

Travel telescope for astronomy trips

A journey to Namibia or an astro field trip in the mountains: observers love to go to unique and dark locations. This compact apo is the perfect piece of travel equipment for astrophotographers who expect the best from their optics.

At just 44cm long, the apochromat can accompany you to all dark places.

Further technical specifications

  • Tube length (retracted): 440mm
  • Tube length with extended dew cap: 515mm
  • Dew cap length: 134mm
  • Tube external diameter: 110mm
  • Focuser adjustment range: 95mm
  • Tube weight: 4.2kg
  • CNC tube clamps

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
85
Focal length (mm)
560
Aperture ratio (f/)
6,6
Max. useful magnification
170
tube diameter (mm)
90
Tube construction
Full tube
lens design
Triplet

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2
Rotating
yes
Gear reduction
1:10 Fine movement
Backfocus (mm)
175
Adjustment range (mm)
95

Mount


Type of build
OTA
GoTo control
no
Mounting type
no mount

Included accessories


Eyepiece adaptor
1,25" - 2"
Miscellaneous
Aluminium case
Corrector
without

General


Series
Pro APO
Length (mm)
440 (fully extended=515)
Total weight (kg)
4,2
Width (mm)
Dew Shield diam=110

Area of application


Nature Observation
yes
Moon & Planets
yes
Nebulae & galaxies
yes
Astrophotography
yes
Sun
not recommended (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Recommended accessories

Telescope accessories > Transport & storage (5)
Carrying bag

Omegon transport bag for 5'' OTAs

$ 99.00*
Telescope accessories > Other (6)

Omegon Radiant Finder with fastener

$ 49.90*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Media (1)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Maintenance & Cleaning (4)

Omegon 7-in-1 lens cleaning set

$ 19.90*

*All prices include VAT plus shipping costs.

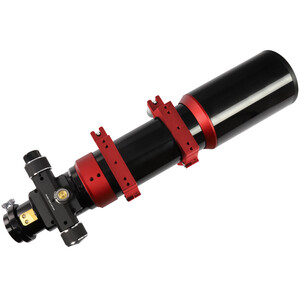

Omegon Apochromatic refractor Pro APO AP 85/560 ED Triplet OTA

The focuser includes a scale and extremely high back focus

Omegon Apochromatic refractor Pro APO AP 85/560 ED Triplet OTA

Wonderful astrophotos and observations. The sharpness and brilliance of the apochromat is impressive

Omegon Apochromatic refractor Pro APO AP 85/560 ED Triplet OTA

It's all secure - your Apo is ready for any journey in the sturdy carrying case
