Telescopes > Pro APO > Omegon Apochromatic refractor Pro APO AP 104/650 ED Triplet OTA
Product no.: 45634

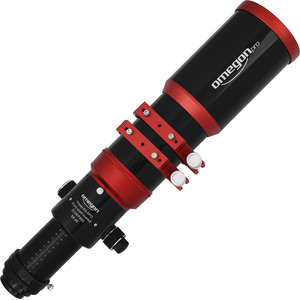

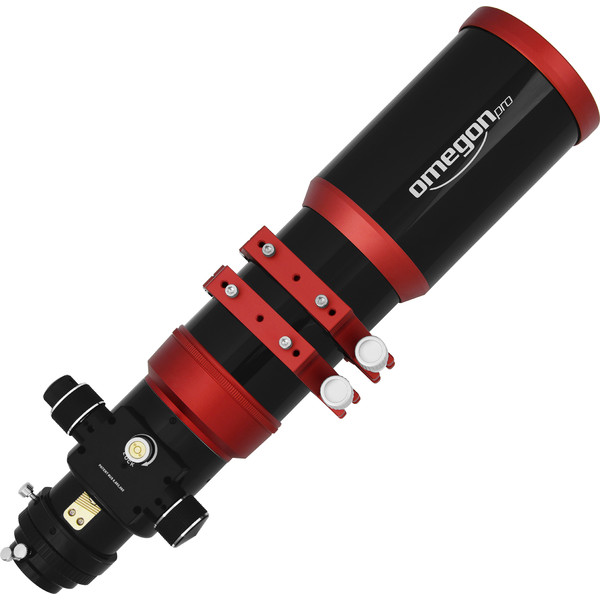

Apochromatic refractor Pro APO AP 104/650 ED Triplet OTA

$ 3,190.00 incl. VAT, plus shipping costs
too expensive?
on stock
ready for shipping in 24 h + lead time

Delivery possible before Christmas (European destinations) - when you order by 18.12.!
Right of return up to January 31 2023!


This product is available in the following variants:
Corrector Price
Flattener $ 3,390.00
without $ 3,190.00

Product description

More about the series Pro APO...

Right on course with the flagship - the 104mm triplet apo for fantastic astronomy photos

If you are looking for an apochromat with a colour-neutral and superb contrast images, you are exactly right when Omegon 104 f 6. This triplet air-gap lens, made with Ohara Glass from Japan, provides a vibrant image with pin-sharp stars right out to the edge of the field of view. You will experience ultra-high contrast even at higher magnifications. Take this master photographer with you 'on board' - it is superb for virtually any type of astrophotography.

The highlights in a nutshell

  • triplet lens with FPL-53 and FPL-51 elements
  • pure colour images and outstanding contrast
  • full illumination - 2.9" focuser with diagonal gearing and 1:10 micro-focusing
  • 2"/ 1.25" reducer and M74 thread
  • aluminium transport case

The optics achieve an image of the highest quality

Observing a planet with this apochromat is no less than an absolutely amazing experience. Compared to most mirror systems, you will see more detail and with better contrast - a planet which simply looks much sharper. And that which is true for planets is of course also valid for star clusters or other deep-sky objects.

The reason for this is one of the best optical systems that we know of. A triplet lens with an OHARA FPL 51 and an FPL 53 element eliminates chromatic aberration completely. This sets the basis for this refractor to take captivatingly beautiful and exclusive astronomy photos.

The image definition of Apos is much better than that of mirror systems as they have no OTA obstruction with its associated deterioration in intensity distribution of the Airy disk. Especially for small contrast differences, the refractor is an unbeatable tool.

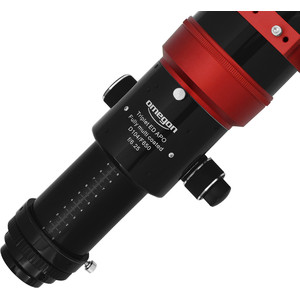

2.9" hybrid focuser - for full illumination

The apo has a 2.9" focuser, meaning you can connect any camera to it - whether you have an APS chip or a full-frame camera, complete illumination is always guaranteed. The focuser is focused via diagonal gearing and runs on plain bearings. That means even if you connect a heavy camera, accurate focusing is always assured.

Any position possible - 360° rotatable

It all too often happens that you as an astronomy photographer have an object in view which is not aligned with the camera image. Perhaps an elongated object is not aligned with the long axis of the chip but at right angles to it. This problem can however be easily resolved with this telescope by simply rotating the 360° rotatable focuser.

Dual Speed ​​1:10 micro focuser

The focusing of objects takes place in two stages - using the coarse focuser and then the 1:10 micro-focuser. This fine adjustment knob allows objects to be focused much more accurately. Astrophotographers know the problem well - you think you have reached optimal sharpness, but actually you have overshot it.

The micro-focuser is so mechanically precise however that it responds to even minimal changes when homing in on the precise point of focus

1.25", 2" and M74 connectors

The 2.9" focuser has a standard 2" connection and a reducer for 1.25". You can use these to connect all the accessories from our range, such as eyepieces and adapters. An additional M74 thread serves for attaching your full-frame camera. And it all works with a fully illuminated and flat image field.

CNC tube for of the best optics

The tube with Omegon apos consists of a CNC-machined metal construction with a sophisticated baffle system for preventing internal reflections. The entire interior of the tube is also lined with a velvet-like black fabric.

Dew shield

The apo's dew shield is extendable, taking the apo to a maximum 635mm in length.

Tranport case - The 'cabin' of the refractor

Every time the refractor is not in use, it returns to its 'off-duty' position, i.e. it goes into its transport case. An aluminium exterior and precisely moulded foam-element interior ensures the instrument is protected from dust and knocks. The refractor is your lookout tower and the mount your control - so that, in future, you will be getting the best results in the country.

Further technical details

  • tube length (retracted) 564mm
  • tube length, with dew shield fully extended, 635mm
  • dew shield length 134mm
  • OTA OD 114mm
  • focuser adjustment 96mm
  • dimensions of transport case 670x230x231mm
  • OTA weight 5560g
  • CNC-machined tube rings 820g

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
104
Focal length (mm)
650
Aperture ratio (f/)
6,25
Light gathering capacity
208
Max. useful magnification
208
tube diameter (mm)
114
Tube construction
Full tube
lens design
Triplet

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2,7
Rotating
yes
Gear reduction
1:10 Fine movement
Backfocus (mm)
175
Adjustment range (mm)
95

Mount


Type of build
OTA
GoTo control
no
Mounting type
no mount

Included accessories


Eyepiece adaptor
1,25" - 2,7"
Miscellaneous
Aluminium case
Corrector
without

General


Series
Pro APO
Length (mm)
564 (fully extended=635)
Total weight (kg)
6,5
Width (mm)
Dew Shield diam=134

Area of application


Nature Observation
yes
Moon & Planets
yes
Nebulae & galaxies
yes
Astrophotography
yes
Sun
not recommended (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Recommended accessories

Telescope accessories > Transport & storage (4)
Carrying bag

Omegon transport bag for 5'' OTAs

$ 79.00*
Telescope accessories > Other (8)

Omegon finder shoe (Vixen-style)

$ 14.90*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Media (1)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Maintenance & Cleaning (4)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Astronomy (1)

Omegon eyepiece and accessories case, large

$ 249.00*

*All prices include VAT plus shipping costs.

Omegon Apochromatic refractor Pro APO AP 104/650 ED Triplet OTA
Ultra Stable - The CNC-machined tube ring clamps are anodized flame red and provide your telescope with a firm anchor. 3" GP rails or prism rails are simple to attach by means of the five drillings on the upper and lower sides of the clamps.

Omegon Apochromatic refractor Pro APO AP 104/650 ED Triplet OTA
Focus can be adjusted over the entire 96mm range using the focuser. The scale then means you will always be able to find the precise position of focus in future.

Omegon Apochromatic refractor Pro APO AP 104/650 ED Triplet OTA
At home or during transport - the tailor-made case is the right place for your telescope when it is not sitting on its mount.

Omegon Apochromatic refractor Pro APO AP 104/650 ED Triplet OTA
M57 Ring Nebula - taken with Omegon 104/650 ED triplet plus Omegon field flattener

Omegon Apochromatic refractor Pro APO AP 104/650 ED Triplet OTA
Triangulum galaxy, Messier 33, Pedro Moreno & Carlos Malagon, 104/650 ED Triplet, Atik460EX
Omegon Apochromatic refractor Pro APO AP 104/650 ED Triplet OTA
Andromeda Galaxy complex, Michele Russo, 104/650 ED Triplet, Canon 700d
Omegon Apochromatic refractor Pro APO AP 104/650 ED Triplet OTA
The Heart Nebula (IC1805) lies between the constellations Cassiopeia, Perseus and Camelopardalis. There is an open cluster of stars in the centre of the nebula which is stimulating it to emit light. Image: Sebastian Voltmer.

Omegon Apochromatic refractor Pro APO AP 104/650 ED Triplet OTA
Matching finder-scope shoe optional (not included in delivery)
