Telescopes > Pro APO > Omegon Apochromatic refractor Pro APO AP 72/400 Quintuplet OTA
Product no.: 65156

Apochromatic refractor Pro APO AP 72/400 Quintuplet OTA

$ 1,290.00 incl. VAT, plus shipping costs
too expensive?
on stock
ready for shipping in 24 h + lead time

Product description

More about the series Pro APO...

Five lenses, double ED and a flat field of view to marvel at

What is it that drives astrophotographers time and again? The desire to capture objects and the sky in high quality. With this apochromat, you can do just that. The specially selected ED glass and a colour-pure image result in observations displaying fine details that would not be possible with basic optics. Experience a new standard of quality for yourself.

The highlights at a glance:

  • 72mm quintuplet ED Apo with five lenses, two of which are made of ED glass for an even more brilliant image
  • A two-lens integrated corrector ensures a flat and illuminated field, also suitable for full-frame cameras with an image circle of up to 44mm
  • 3" focuser with a 1:10 reduction ratio: Easily focus larger and heavier cameras with high precision
  • 140mm back focus
  • Camera rotates 360° so you can find the right orientation

Why these optics reveal more details
No more images without contrast. This apochromat shows what is really possible: pure-colour and high-contrast observations and astrophotos. The key is a sophisticated optical design with premium ED glass for a crystal-clear image. Compared to most mirror systems, the better-defined optics allow you to see more and finer details when observing the planets, for example. All surfaces of the lens elements are treated with an effective multi-coating to prevent reflections. Enjoy memorable observations and shots.

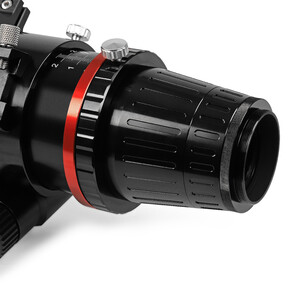

Large focuser with gearing and ball bearings

Full-frame enthusiasts need space: That is precisely what the geared focuser offers. It beautifully complements the premium optics and produces great illumination and images without shading. Hybrid Crayford and gear technology combines perfectly smooth focusing with high load-bearing capacity. A 1:10 reduction gearing makes precise focusing a breeze. Astrophotographers around the world value precisely these features.

360° rotation for framing the perfect photo.
You found the object and focused on it, but with the wrong orientation? Save yourself the trouble of having to start over again at night to align an elongated object with the sensor. This is easy to do in seconds thanks to the 360° rotating focuser.

CNC tube designed for the best optics
The tube of the Omegon Apo consists of a CNC machined metal construction with a sophisticated anti-reflective aperture system. The entire tube is lined with a velvet-like, black fabric.

Extending and fixing the dew cap
The Apo's dew cap can be extended and fixed with a screw. It can be retracted for transport.

A camera adaptor is included: male M48x0.75

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
72
Focal length (mm)
400
Aperture ratio (f/)
5,6
Resolving capacity
1,6
Limit value (mag)
11,1
Max. useful magnification
144
tube diameter (mm)
90
Tube construction
Full tube
Light gathering capacity
110
Coating
multiple

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
2 (M48)
Rotating
yes
Gear reduction
1:10 Fine movement
Adjustment range (mm)
55
Ring clamp
yes

Mount


Type of build
OTA
GoTo control
no
Mounting type
no mount

Included accessories


Eyepiece adaptor
1,25" & 2"
Tube clamps
yes
finder schuh
Vixen/Skywatcher Level
Prism rail
Vixen-Style
Corrector
integrated
Transport cases
no
Test protocol
no

General


Series
Pro APO
Length (mm)
317
Total weight (kg)
2,56

Area of application


Nature Observation
yes
Moon & Planets
yes
Nebulae & galaxies
yes
Astrophotography
yes
Sun
not recommended

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Recommended accessories
