Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Nabla-III > Omegon Microscope Nabla III Trino
Product no.: 82929

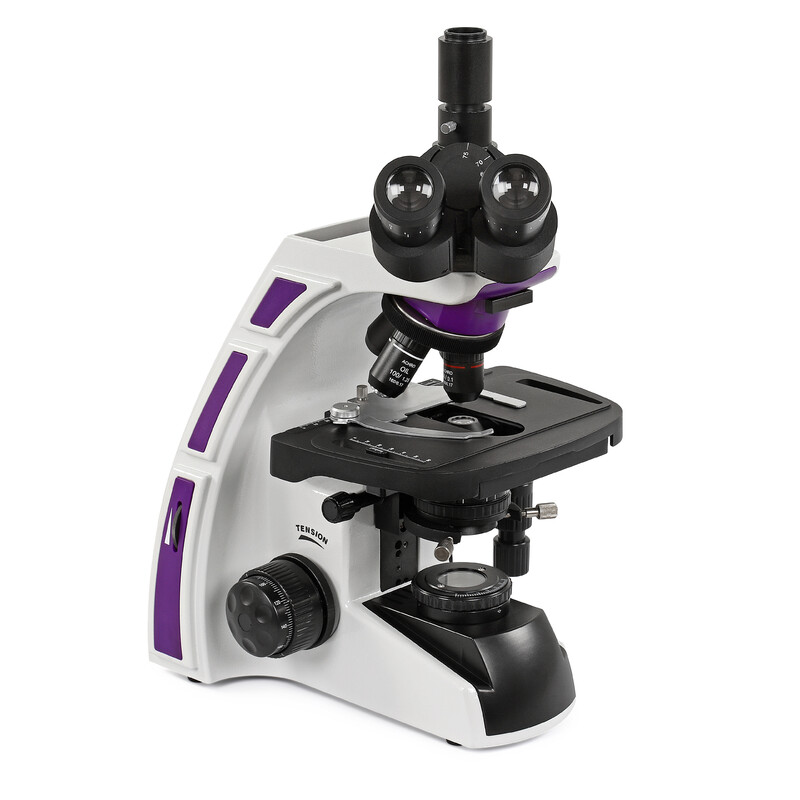

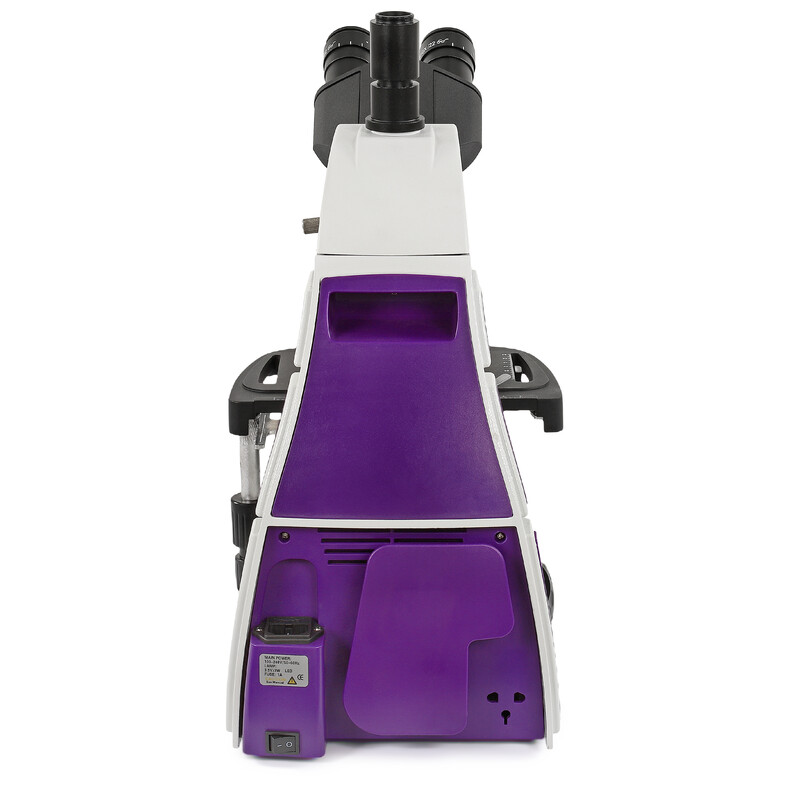

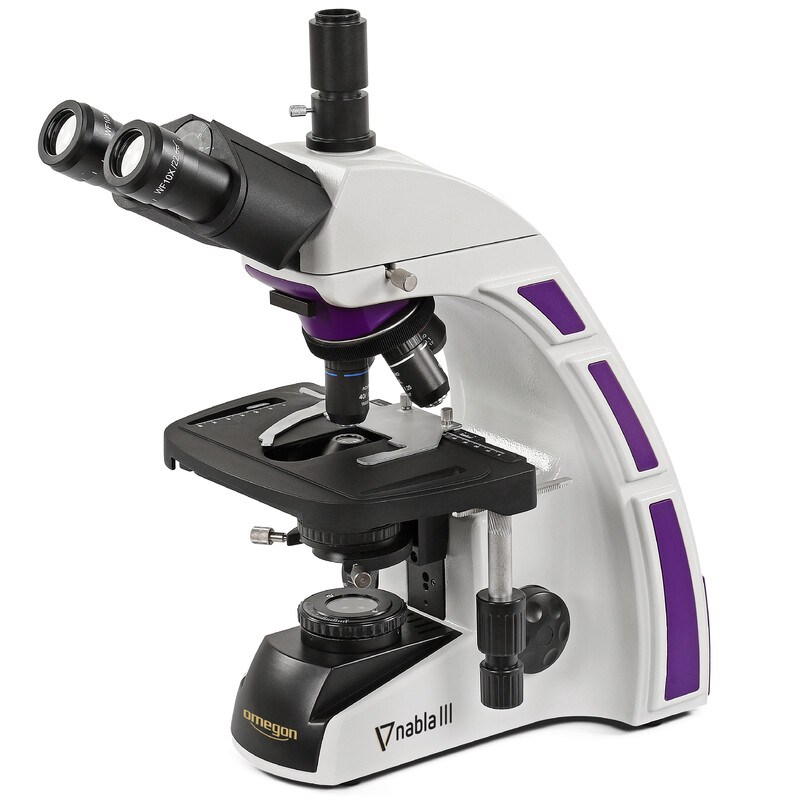

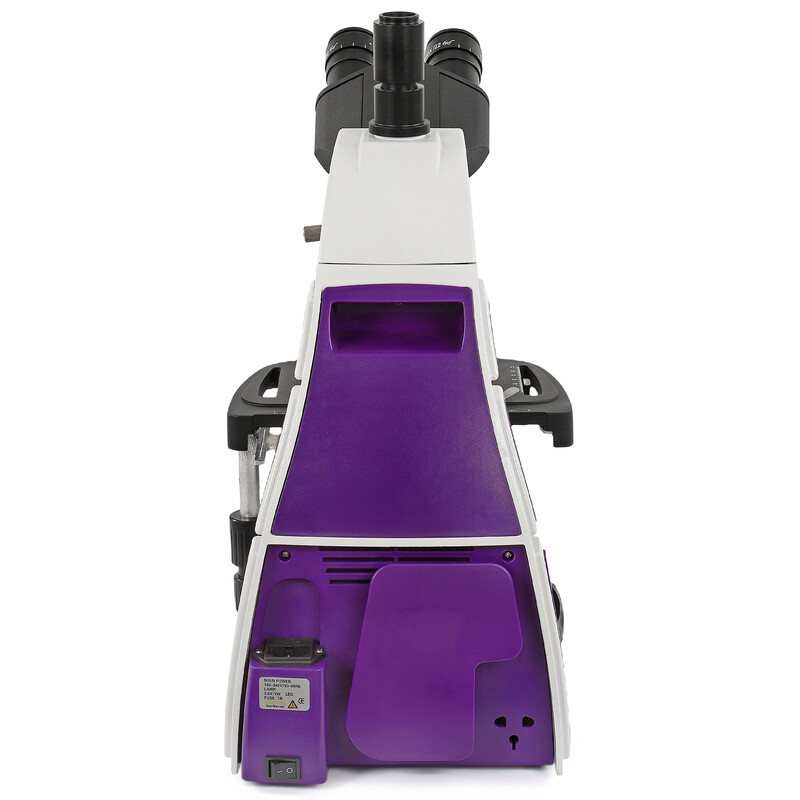

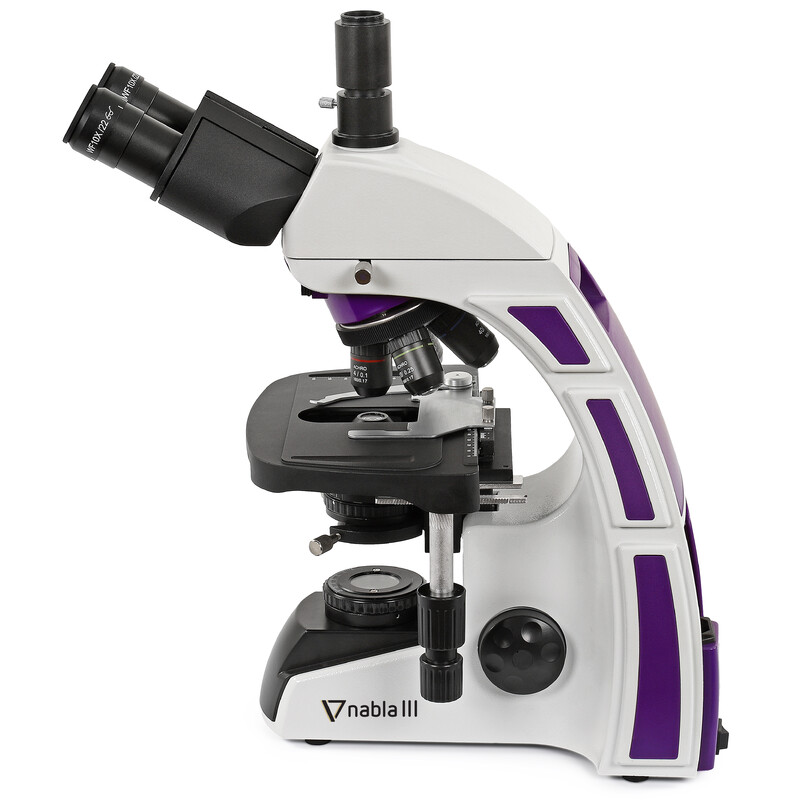

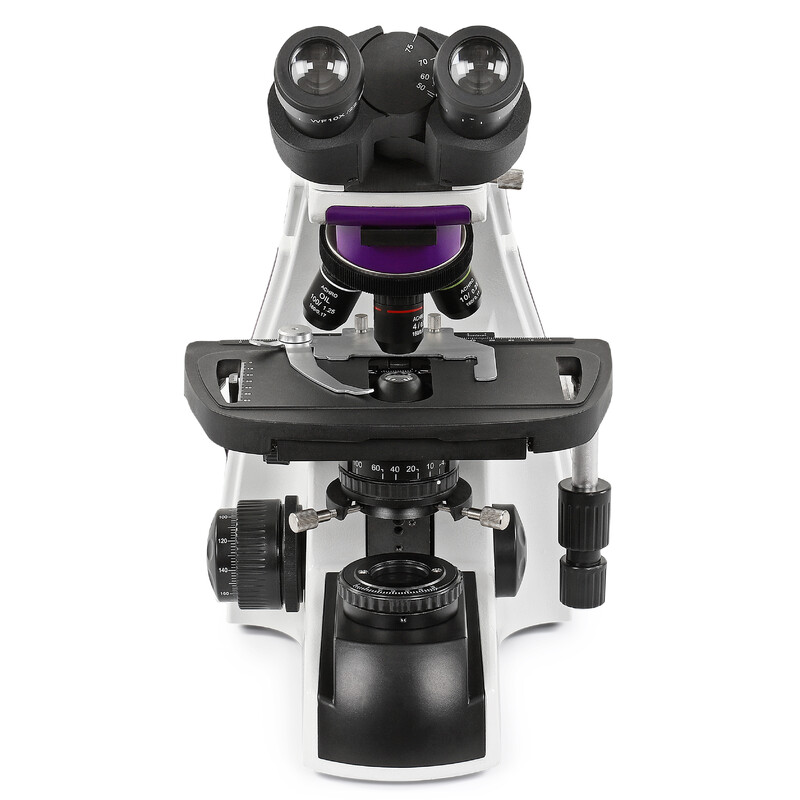

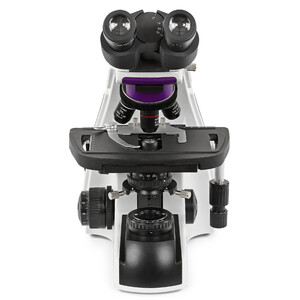

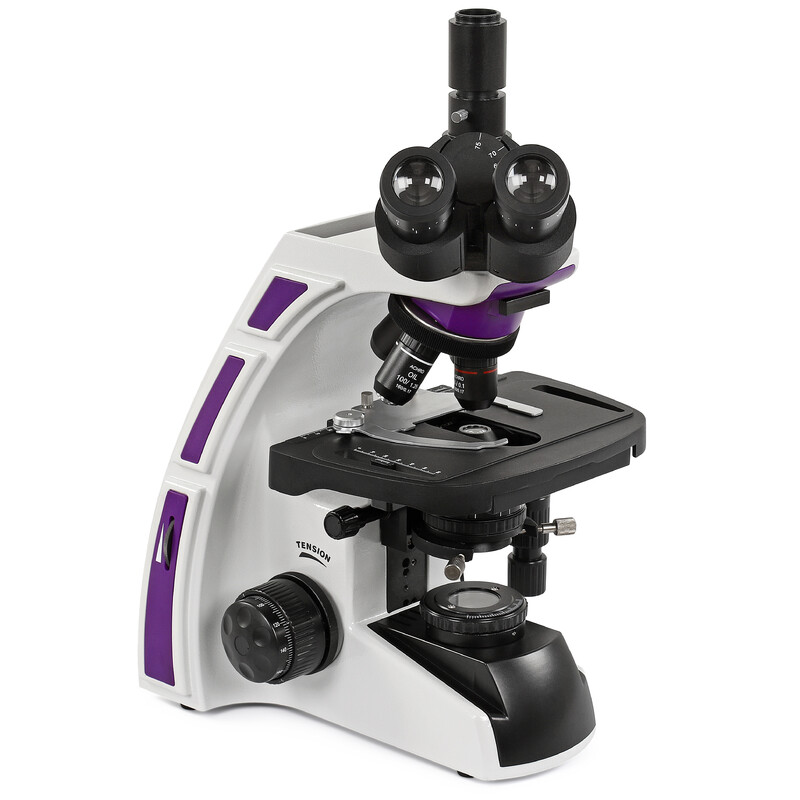

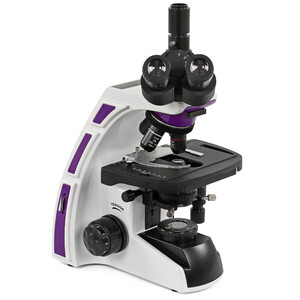

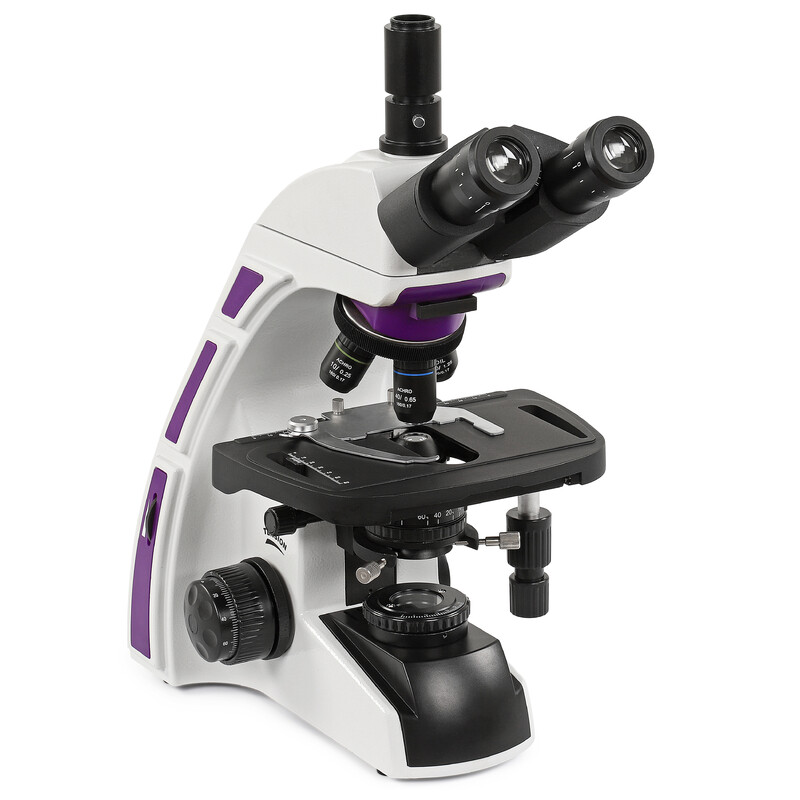

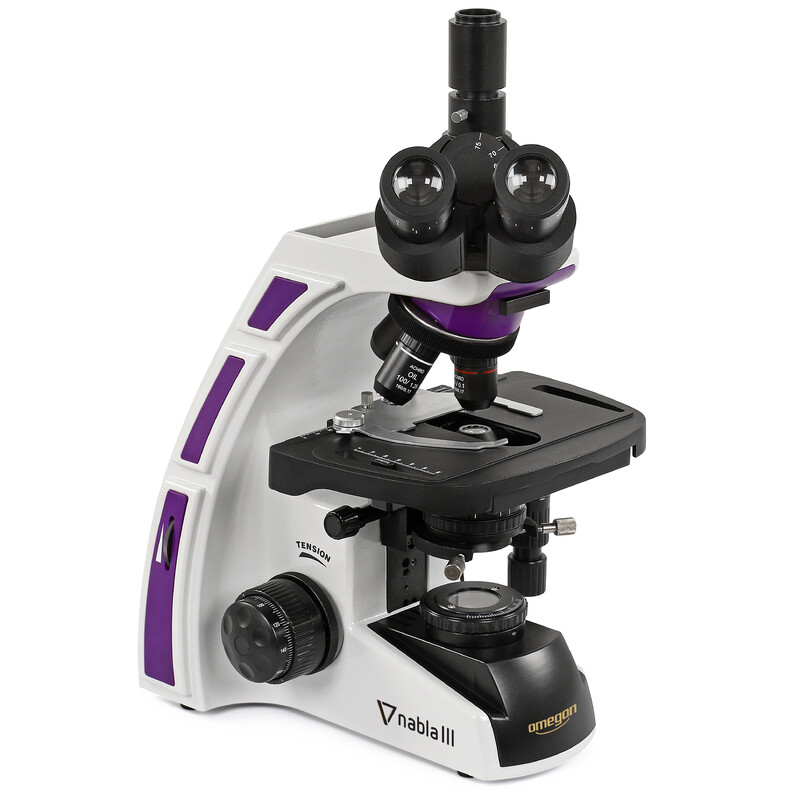

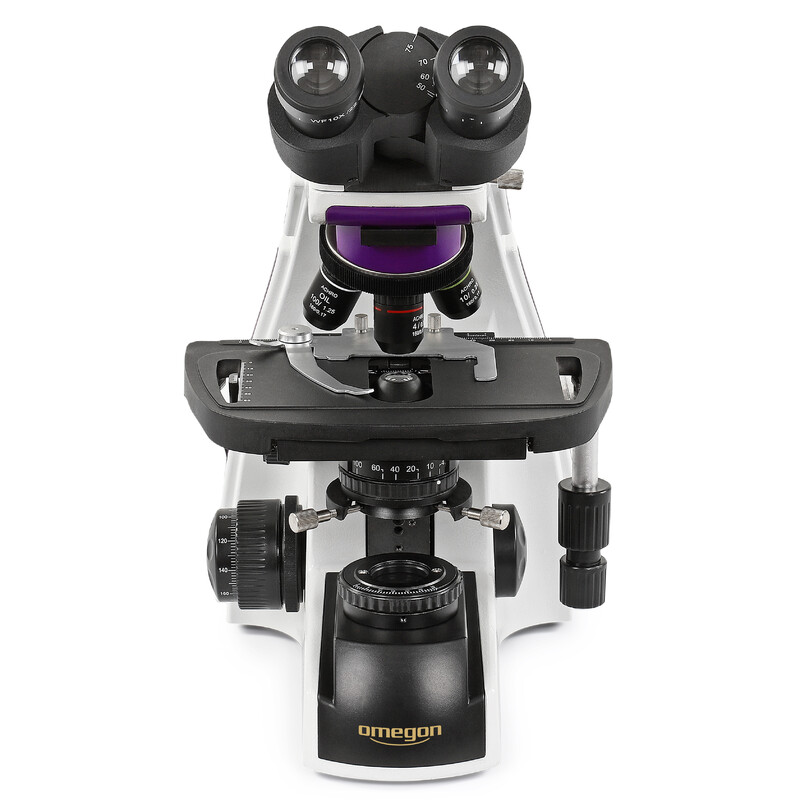

Microscope Nabla III Trino

$ 549.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
This product is available in the following variants:
Type of build Price
Trinocular $ 549.00
binocular $ 499.00

Product description

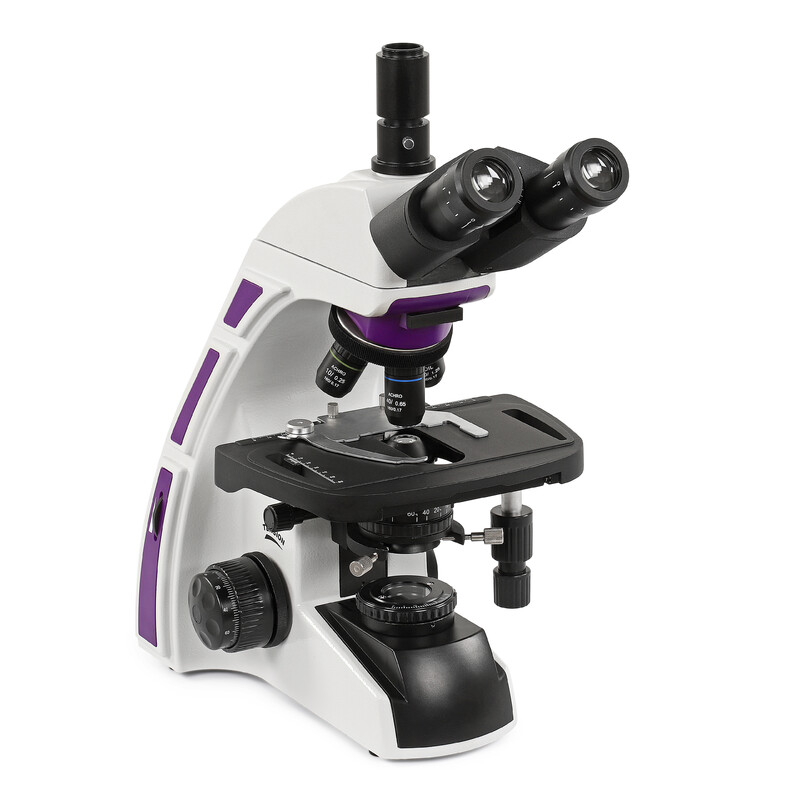

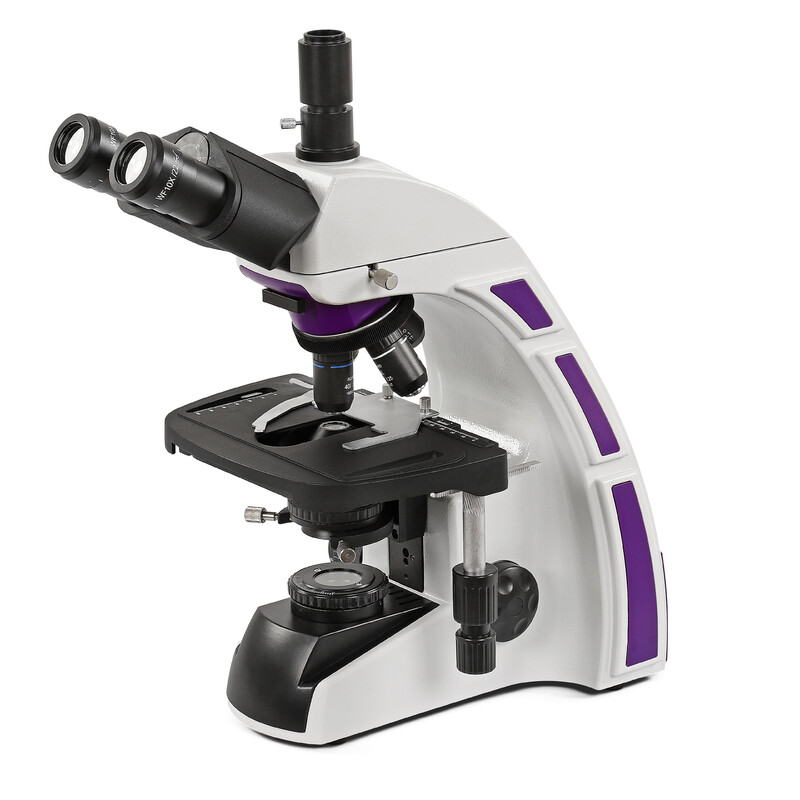

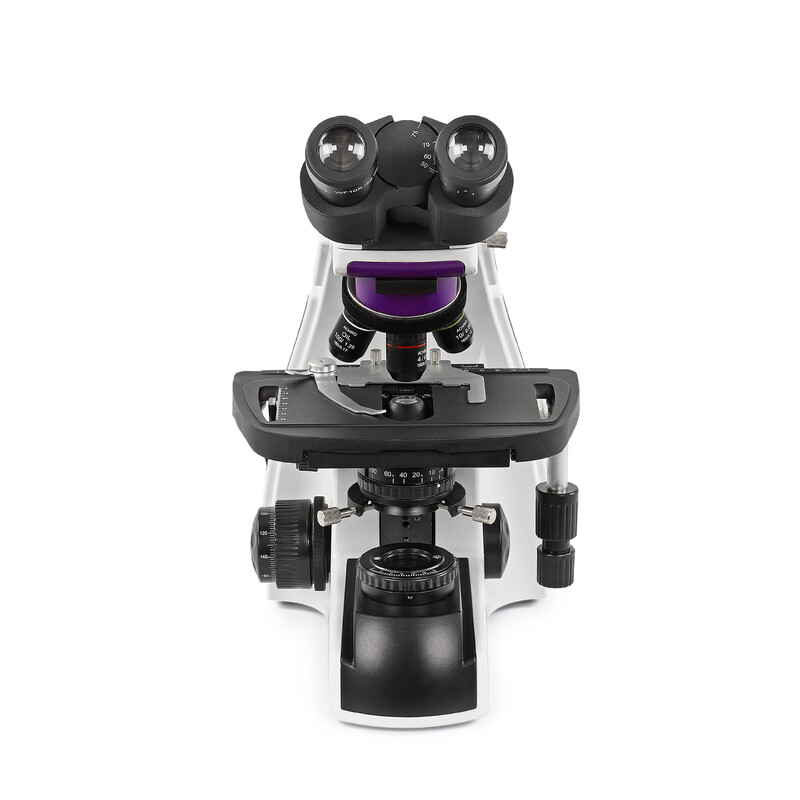

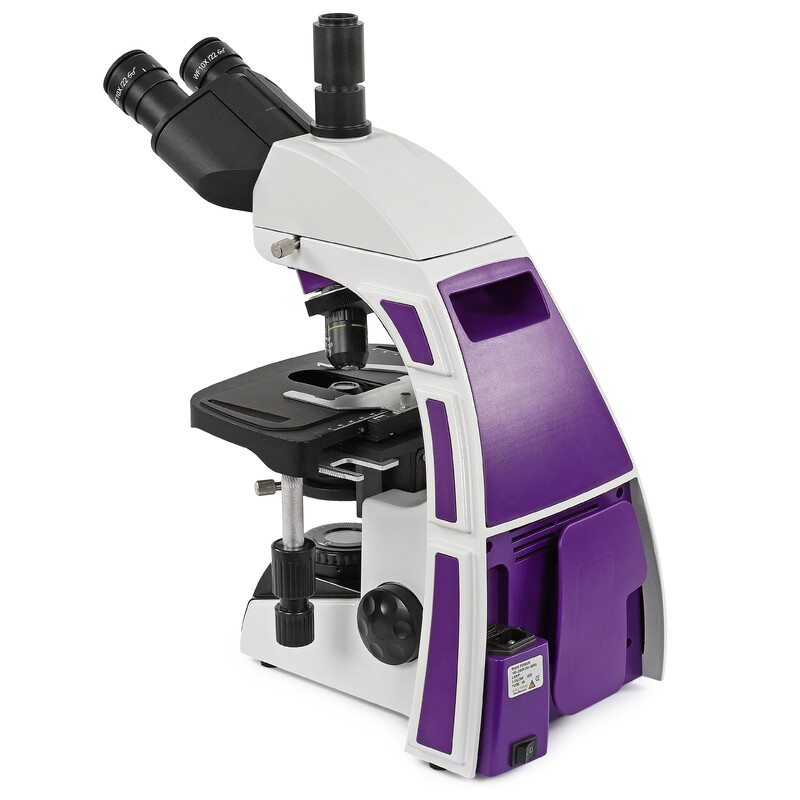

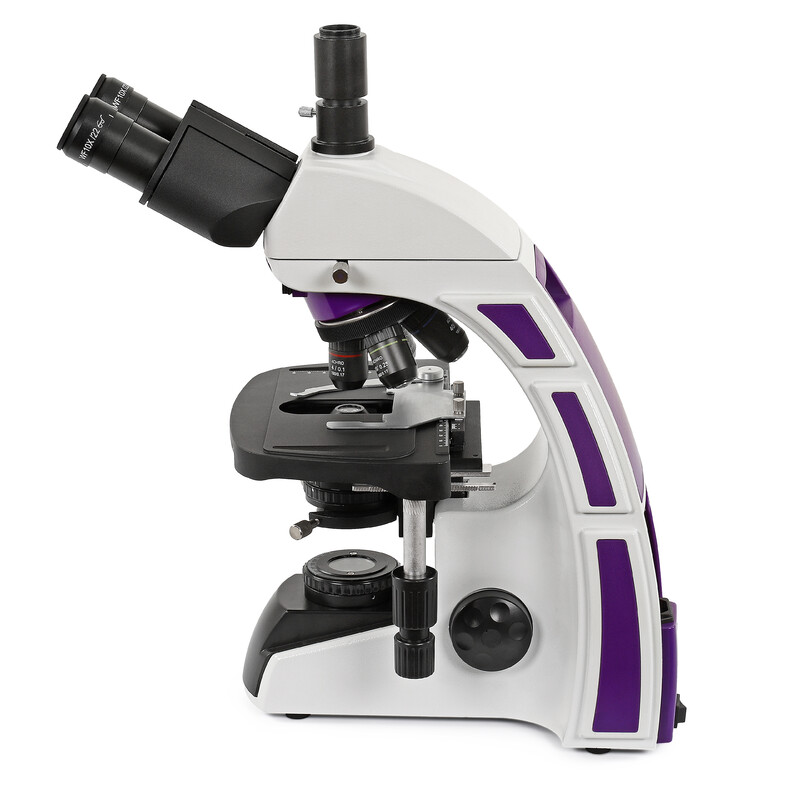

Omegon Nabla III: Laboratory standard for professionals who demand precision

Are you looking for a microscope that understands your needs? The Omegon Nabla III is your reliable partner for tough everyday laboratory work. Here you get genuine laboratory quality: 8 kg of pure stability, modern LED lighting and an extra-large microscope stage.

Advantages at a glance

  • Absolutely vibration-free thanks to its 8 kg weight: your microscope is rock-solid. Even the most precise measurements remain stable and repeatable. The solid housing absorbs any vibrations.
  • Extra-large microscope stage (220 × 148 mm): Twice as much space as standard models. Handle complex specimens with ease.
  • Köhler lighting with LED system Homogeneous light, brilliant contrasts, zero shadows. Every detail perfectly illuminated.
  • Quadruple objective turret with DIN achromatic lenses 4x, 10x, 40x, 100x oil All magnifications at your fingertips. Switch quickly between overview and detailed work.
  • Coaxial cross table Millimetre-precise positioning with X/Y fine adjustment. Your specimen always ends up exactly in the field of view.

Ergonomic binocular head 30° inclined view, 360° rotatable. Work in a relaxed manner, even during long analyses.

Laboratory problems? Solved.

Shaky images at high magnifications make precise measurements impossible. The solid 8 kg housing of the Nabla III completely eliminates vibrations, so that even at 1000x magnification, every detail remains razor sharp. Uneven illumination is also a thing of the past. The professional Köhler lighting ensures perfectly homogeneous light across the entire field of view, without annoying hot spots or shadows.

The generous 220 × 148 mm microscope stage offers you twice as much space as standard models. You can handle large samples and complex test setups with ease, without specimens slipping off the table or having to constantly reposition them. The ergonomic binocular head (360° rotatable, 30° inclined) ensures that you can work comfortably for long days without strain on your back and neck.

An investment that pays off

The Omegon Nabla III is designed for at least 10 years of continuous use. The solid construction with high-quality components and low-maintenance design ensure that this investment will pay for itself over many years. The exceptional stability allows you to work more productively. No constant readjustments, quick sample changes thanks to the large microscope stage and intuitive operation allow you to achieve more results in less time.

The robust mechanics and long-life LED lighting with 50,000 hours of service life significantly minimise your service costs.

Ergonomics for long working days

The well-designed binocular head can be rotated 360° and tilted 30° so that you can find the optimal working position for you. This is complemented by precise fine focusing and a practical filter wheel – all important controls are within easy reach and intuitive to use.

Technical superiority in detail

The high-quality Abbe condenser with a numerical aperture of 1.25 enables maximum resolution up to 0.2 μm with optimal lighting, so that even the finest structures are brilliantly displayed. The DIN standard objectives not only guarantee the highest image quality, but also complete compatibility with all DIN objectives. Your existing equipment remains usable. The coaxial cross table ensures millimetre-precise X/Y positioning so that your specimens end up exactly where you need them.

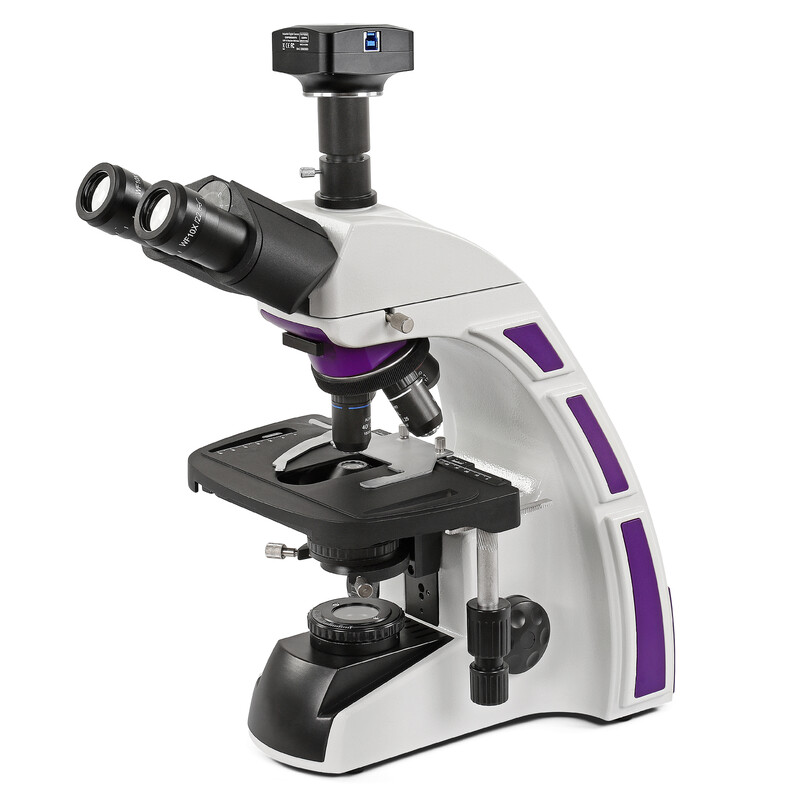

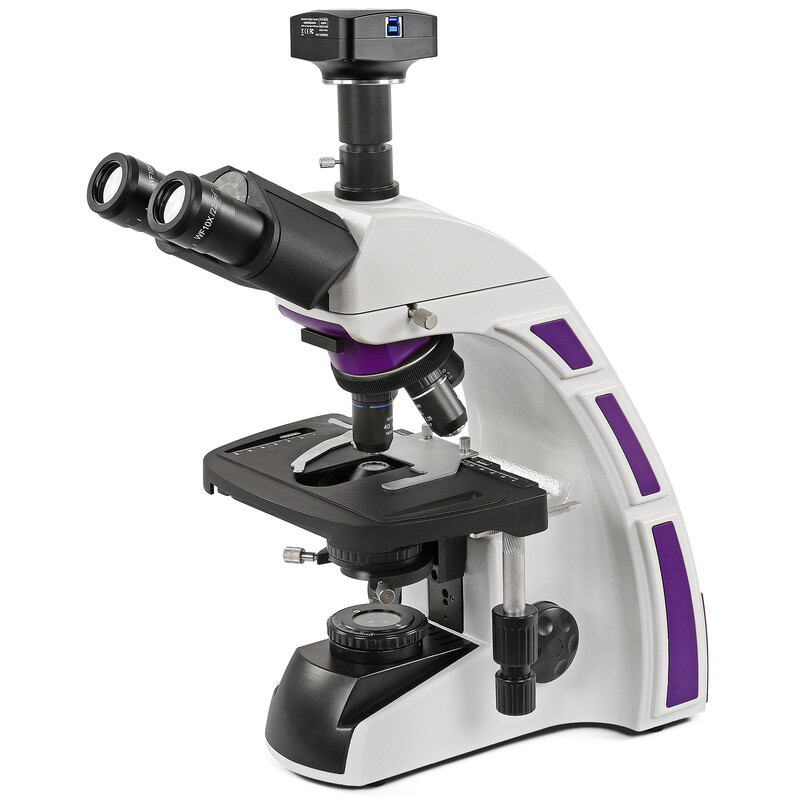

Trinocular version: your images in digital format

The trinocular version adds professional documentation capabilities to your microscope. Simply connect a camera to the third beam path and take razor-sharp images of your specimens. Ideal for presentations, scientific documentation or archiving your results – your discoveries will be permanently traceable.

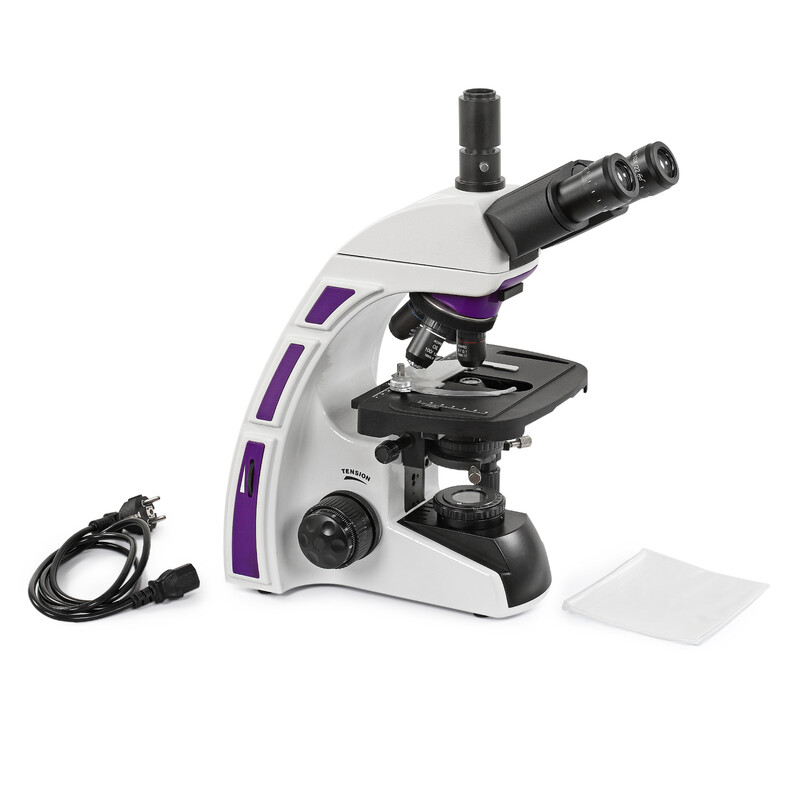

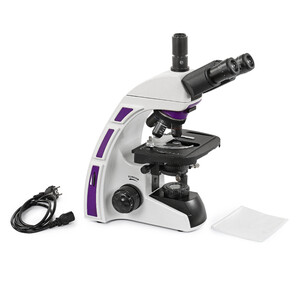

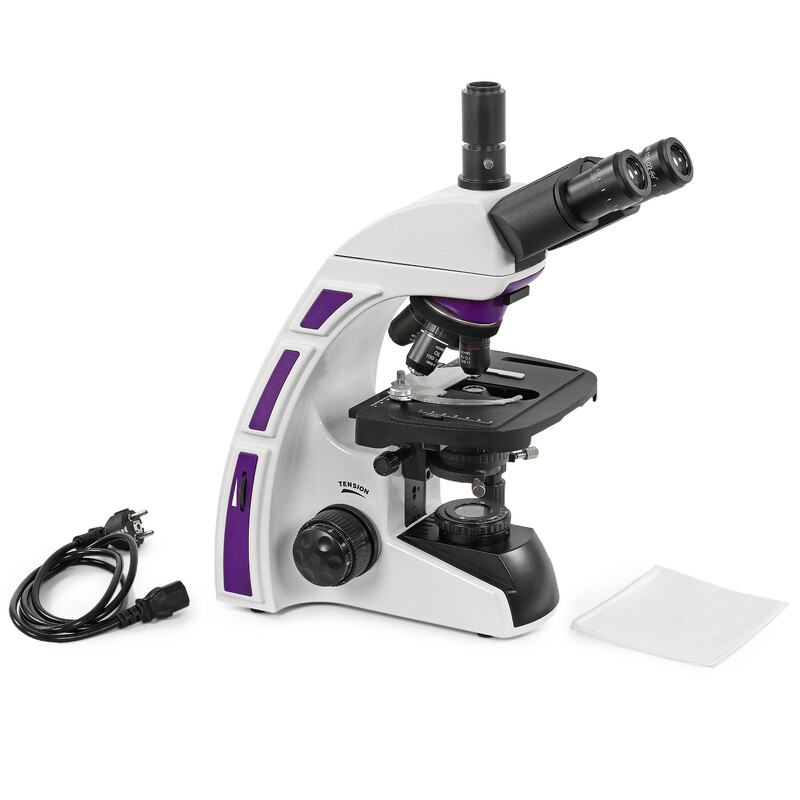

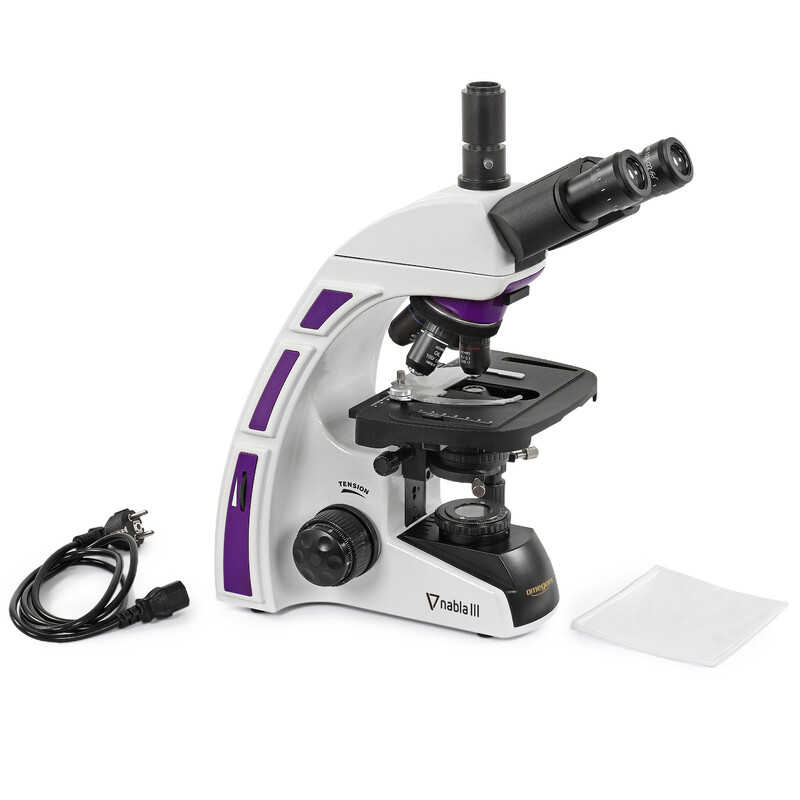

Scope of delivery:

  • Microscope body (binocular or trinocular, 30° inclined, 360° rotatable)
  • Two WF10x wide-field eyepieces
  • Four DIN achromatic lenses and lens turret
  • Coaxial cross table (220 × 148 mm)

Lighting and condenser:

  • Abbe condenser NA 1.25 with Köhler focusing
  • Filter wheel for contrast adjustment
  • LED transmitted light, continuously adjustable

Also included:

  • Gift packaging
  • Trilingual operating instructions

Specifications

Optics


Number of objectives
4
Lighting
Transmitted light
Immersion lens
yes
Condensor
NA 1.25 Abbe condenser focusable with iris diaphragm, height-adjustable
Lamp type
LED 3 W
Objective 1
4x
Objective 2
10x
Objective 3
40x objective, 0.65 N.A. with specimen protection.
Objective 4
100x objective, 1.25 N.A. (oil) with specimen protection.
Lens type
brightfield
Eyepiece
10x WA
Optical system
DIN (160mm)
Power supply
220 V

Capacity


Designed for cover glasses of thickness ... (mm)
0,17
Lamp type
LED 3 W
Type of build
Trinocular

Mechanics


Microscope stage dimensions (mm)
216x150
Type of build
koaxial
Focusing
Coarse and fine movement
Revolver
4
Viewing posture (°)
30° angled eyepiece, 360° rotatable

General


Series
Nabla-III
Colour
white, blue
Weight (g)
8400
Width (mm)
310
Height (mm)
470
Length (mm)
360

Suitable for


Beginners
no
Advanced
Yes
Pros
Yes

Field of application


Biology
yes
Hobby
yes
Medicine
-
Education
yes

Area of application


Amateurs
yes
Physicians
yes
Botany
yes
Dermatology
yes
Embryology
yes
Forensics
yes
Gynecology
yes
Hematology
yes
Histology
yes
Hobby
yes
Internal medicine
yes
insects
no
Marine Biology
yes
Microbiology
yes
Naturalist
yes
Parasites
yes
Pathology
yes
University
yes
Urology
yes
Veterinary medicine
yes
Water
yes
Secondary school
yes
Cytology & Pathology
yes

Product safety

Manufacturer: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, www.nimax.de
