Microscope MonoView, MicroStar, achromat, 1280x, LED

$ 189.00 Sale price:
$ 135.80 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 12.12.2024!

Delivery possible before Christmas (European destinations) - when you order by 18.12.!
Right of return up to January 31 2025!


Product description

Omegon Microstar - makes microscopy a piece of cake


For school, university or just as one of the most interesting leisure activities! Observe plants, pollen, hair, rain water, textile fibres, insects and much more besides. The Omegon Microstar offers a simple and inexpensive way of getting started in microscopy.


Insert an object and begin observing
Simple microscopy means that you do not have to be immediately able to make a professional thin-section slide. Simply insert the slide with the leaf or the insect onto the microscope stage. The Omegon Microstar has both transmitted and incident LED lighting available, making even opaque objects or basic specimens amazingly easy to observe. In addition, LED technology offers a virtually unlimited service life. You can also adjust the lighting level to the brightness you require.

Easy observing and detailed viewing

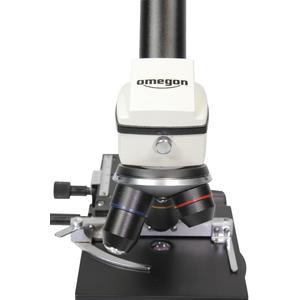

The eyepiece is set at a viewing angle of 45° and the head of the microscope can be rotated by 360°, meaning that you will always be able to employ the most comfortable position for observing. The Microstar is extremely versatile, providing magnifications from 20x up to1280x and it is very simple to change the magnification employed during use. The lens turret comes with 4x, 10x and 40x objective lenses. Observing is also particularly enjoyable due to the wide field of view proved by the wide angle eyepieces included.

Microscope stage
Your slides are held securely in position on the microscope stage, which includes a vernier scale. The slide being observed can be precisely and sensitively moved around in two axes by the use of knurled screws. The slide can always be correctly positioned, even at high magnifications.

Even more contrast
The five different colour filters and sub-stage condenser provided allow you to further increase the contrast in order to make out even more detail.

Wide range of accessories included

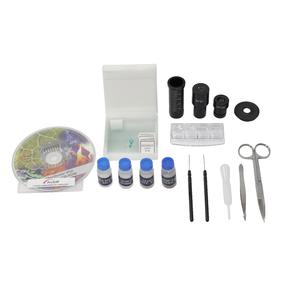

Everything is already included that you will need for getting started: a digital PC eyepiece for sending images to the computer, image processing software, a Barlow lens for higher magnification, extensive microscopy instruments, microtome, prepared slides, hatchery, shrimp eggs, sea salt, yeast, 10 slides and cover slips, carrying case and power supply.


The advantages in a nutshell:

  • comfortable 45° viewing angle
  • adjustable LED lighting
  • bright transmitted and incident lighting
  • wide field of view
  • precise adjustment of the stage
  • contrast increased by sub-stage condenser and colour filters
  • slides and prepared slides included
  • digital PC eyepiece with software for Win 7, Win 8, Win 10
  • power supply
  • instructions in German

Our expert comment:

The Barlow lens comes pre-installed on the focuser. It can be easily unscrewed to remove it.

(Bernd Gährken)

For Win 8/10 please go to the download section and download the driver Omegon Microstar Camera Setup. Use this instead of the original drivers supplied in the CD-ROM.

(Pedro Pereira)

Specifications

Optics


Lighting
Incident light and transmitted light
Lamp type
LED (6V, adjustable)
Magnification
1280 (20x)
Lens type
Achromatic
Image scale
4, 10, 40
Eyepiece
5, 16 (Wide-field eyepiece, extra: 2x Barlow lens)
Condensor
-
Power supply
Power pack

Capacity


brightfield
yes

Mechanics


Viewing posture (°)
45° oblique viewing, 360° rotating head
Focusing
Coarse movement
Working distance (mm)
30
Specimen stage
Cross table (with vernier scale)
Type of build
Monocular

Special features


Luminous field diaphragm
-
Centering stage
-
Rechargeable battery operation
-
Filter holder
yes
Built-in digital camera
yes
Dust cover bag
yes

Camera


Resolution Photograph (Pixel)
640x480
LCD screen
-
Video function
-
Interface
USB

General


Suitable from
9
Length (mm)
235
Width (mm)
180
Height (mm)
320
Weight (g)
1100
Series
MonoView
Colour
gray

Suitable for


Pros
-
Beginners
yes
Advanced
yes

Field of application


Hobby
yes

Area of application


Interference contrast
-
Metallurgy
-
Kids
yes

Recommended accessories

Microscopy > Microscopy supplies (8)

Omegon microscope slides, 25.5 x 76.2cm, ground edges, 50 pieces

$ 8.90*
Maintenance & Cleaning (4)

Omegon 7-in-1 lens cleaning set

$ 19.90*

*All prices include VAT plus shipping costs.

Omegon Microscope MonoView, MicroStar, achromat, 1280x, LED
You get a compact carrying case, digital PC eyepiece and a huge range of accessories. So you can get started immediately!

Omegon Microscope MonoView, MicroStar, achromat, 1280x, LED
The leg of a housefly at 40X magnification. Taken using the microscope's digital PC eyepiece.

Omegon Microscope MonoView, MicroStar, achromat, 1280x, LED
The leg of a housefly at 400X magnification.

Omegon Microscope MonoView, MicroStar, achromat, 1280x, LED

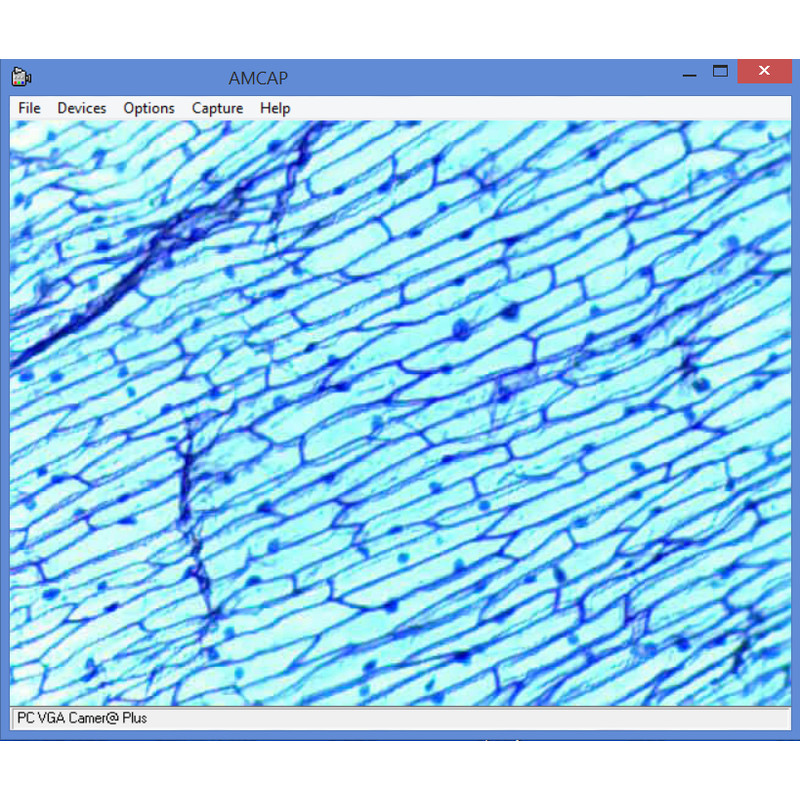

Onion skin at 40X magnification

Omegon Microscope MonoView, MicroStar, achromat, 1280x, LED
Onion skin at 100X magnification

Omegon Microscope MonoView, MicroStar, achromat, 1280x, LED
Onion skin with cell nuclei at 400X magnification
