Telescope accessories > Mountings & accessories > Mounting plates and rails > Omegon Dual prism clamp (Losmandy- and Vixen-Style)
Product no.: 53693

Dual prism clamp (Losmandy- and Vixen-Style)

$ 119.00 incl. VAT, plus shipping costs
too expensive?
on stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 09.02.2023!

Product description

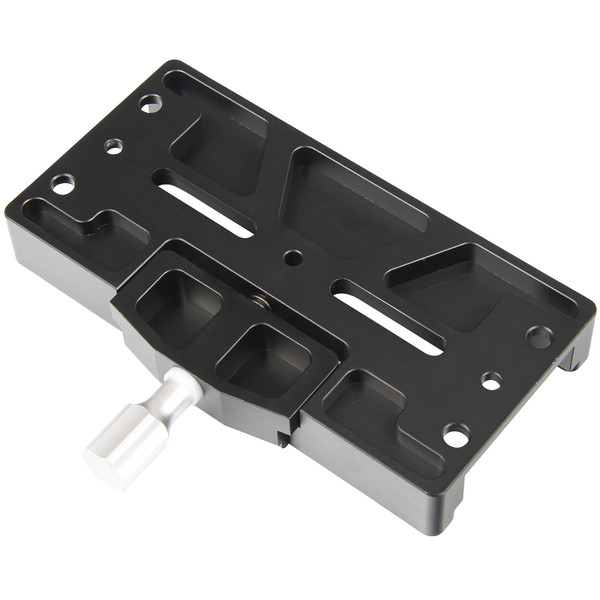

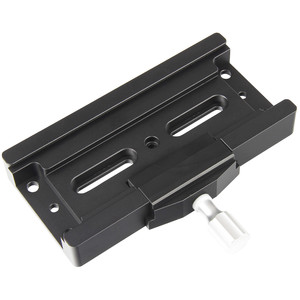

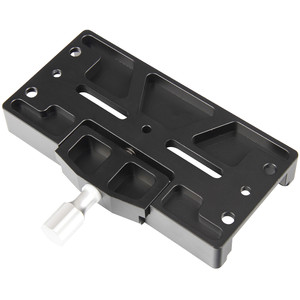

Omegon dovetail clamp, Losmandy and Vixen style for the ultimate secure grip

On mount heads, as a double mount or on the side of the counterweight. The Omegon saddle is perfect wherever you need a secure hold of your telescope. The saddle plate is compatible with all 3” Losmandy or Vixen style dovetail bars.

The advantages at a glance:

  • Saddle plate for Losmandy and Vixen style dovetail bars
  • Easy to assemble: quick attachment for telescopes
  • Wide surface area: grips the telescope securely and leaves no grooves in the rail
  • Mounting holes with two slots

From Vixen to Losmandy: suitable for all dovetail bars

There are two telescope attachment types: Vixen and Losmandy. These two brands reflect differing rail sizes, and are used by almost all manufacturers today - which is a great relief for all telescope owners. When you attach a telescope in the future it will always fit into the Omegon saddle; thanks to the clever design it is compatible with both formats.

Clamp with wide surface area and greater load-carrying capacity

The broad clamp has a wide surface area which ensures a secure grip even with heavy instruments. This system is considerably more superior than a point clamp. A real plus: the dovetail bars look immaculate even with regular use, ensuring your telescope holds its value.

Quick connection

Quickly attach and detach the telescope. This is an advantage that all modern mounts should have. With the Omegon saddle you achieve exactly that. No screws, you simply place the telescope in the saddle and then secure the central clamp with a short turn. Easy even with gloves on in the dark.

Mounting holes

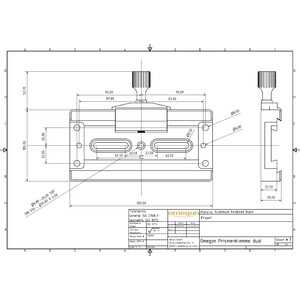

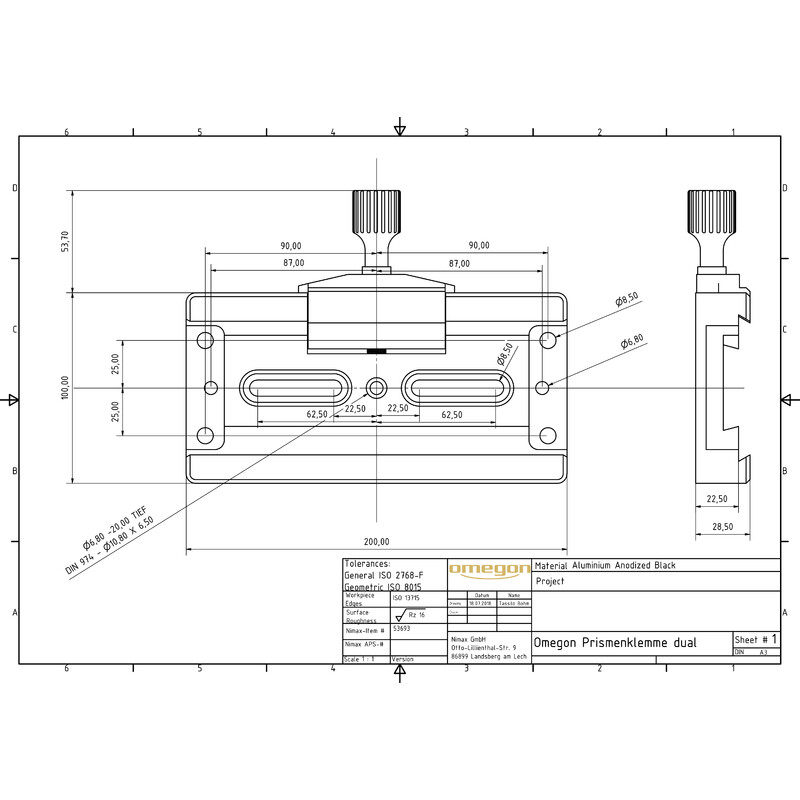

The dovetail clamp is 20 centimetres long. There are three holes at each end and two slots in the middle. Together they ensure that the attachment to the mount head works perfectly.

Specifications

Capacity


Material
Aluminium
Weight (g)
780

General


Colour
black
Length (cm)
20
Type of build
Losmandy & Vixen
Type
Prism clamp
Omegon Dual prism clamp (Losmandy- and Vixen-Style)
Omegon Dual prism clamp (Losmandy- and Vixen-Style)
Omegon Dual prism clamp (Losmandy- and Vixen-Style)
