Product description

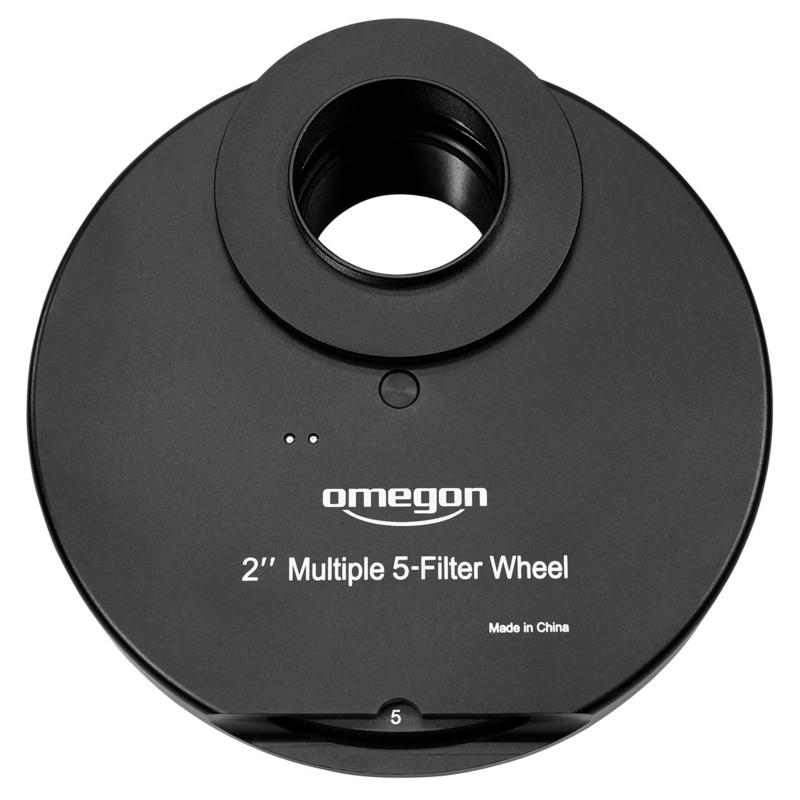

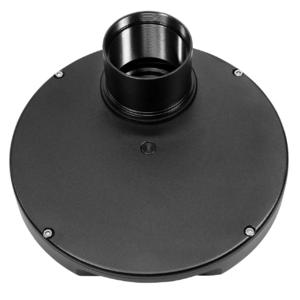

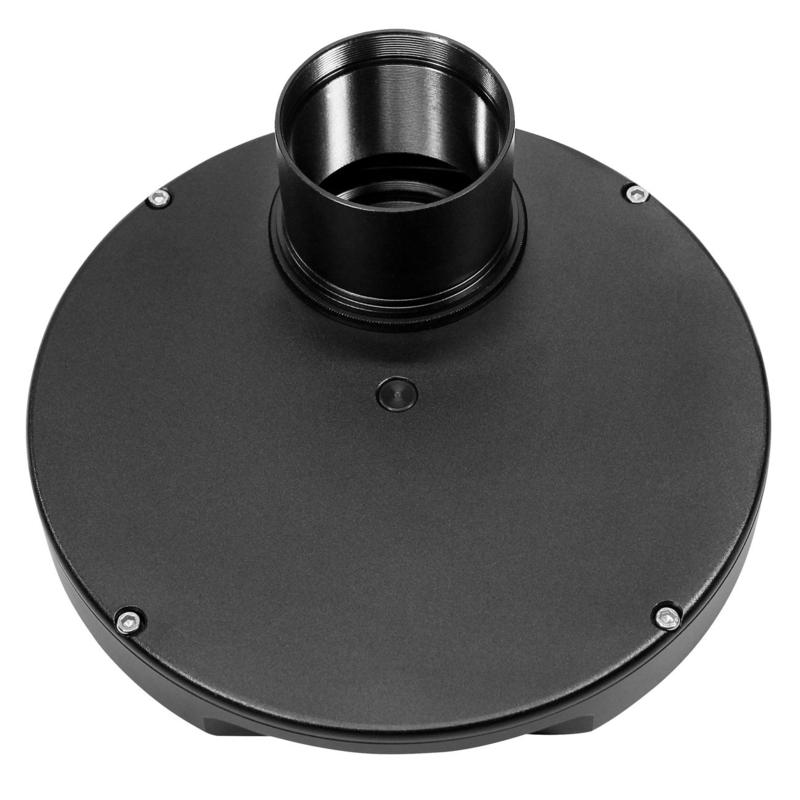

Omegon 2" filter wheel - change your filter in seconds

This 2" filter wheel lets you use up to 5 different filters and change them within just a few seconds. Whether for astrophotography or visual observing - your filters are always ready to use. Use the filter wheel with UHC, OII, CLS and other filters, for example - which lets you quickly and easily find the best filter when visually observing.

Space for up to 5, well protected, filters

Open the filter wheel and screw up to 5 different filters into it. These can be RGB and luminance filters for astrophotography or wide-band and narrow-band filters for visual observing. You can also leave your filters mounted in the filter wheel, as they are optimally protected from dust and damage there.

Simply rotate to change filter

Imagine you have a camera mounted on the telescope and have to switch between different filters and quickly as possible. This is only possible using a filter wheel. A handy rotary wheel offers you incredibly fast switching between up to 5 different filters. Each filter position is designated by a number, which lets you know which filter is currently in the beam path.

T-2 connector on both sides

The telescope side of the filter wheel comes supplied with a 2" adapter, allowing you to quickly and easily attach it to your focuser. The filter wheel also has a T-2 thread on the telescope side for other adapters. On the accessory side, you will also find a T-2 and M48 thread. You can connect your camera or eyepiece connector here.

Protected against stray light

The filter wheel interior is absolutely light-tight - allowing you to image without any reflections or stray light

The advantages in a nutshell:

  • filter wheel with space for up to five 2" filters
  • once mounted, filters can be changed in seconds
  • takes any standard 2" filter
  • filter positions indicated by the numbers 1-5

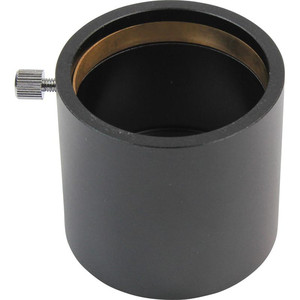

  • telescope-side 2" connector with nosepiece
  • accessory-side M48 thread

Specifications

Capacity


Connection (to the telescope)
2"
Max. number of filter slots (piece)
5
Filter slot
2"
Adjustment
Adjusting wheel with click-stop
Camera adaptor
yes
Optical length (mm)
26.5 / 29

Equipment


Motor-powered
no

General


Weight (g)
380
Diameter (mm)
140
Width (mm)
22
Type
Filters
Type of build
Filter wheel

Recommended accessories

Telescope accessories (1)

Omegon M48 male to T2 male

$ 29.90*

*All prices include VAT plus shipping costs.

Omegon 2'' filter wheel
Omegon 2'' filter wheel
Omegon 2'' filter wheel

Customer reviews

A bargain excellent rugged 2" filter-wheel

Review by macoram on 05.05.2017 20:48:16

( 5 / 5 )

A solid 2" filter-wheel allowing 5 filters. Each position clicks in place allowing easy operation in the dark.
A male-male 2" to T2 screw adapter is needed in order to solidly connect a camera.
