Telescope accessories > Eyepieces > Recticle > Omegon Reticle eyepieces Illuminated crosshair eyepiece, Kellner 12mm
( 3 / 5 )
Product no.: 49759

Reticle eyepieces Illuminated crosshair eyepiece, Kellner 12mm

$ 69.00 incl. VAT, plus shipping costs
on stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 07.12.2022!

Delivery possible before Christmas (European destinations) - when you order by 18.12.!
Right of return up to January 31 2023!


Product description

More about the series Recticle...

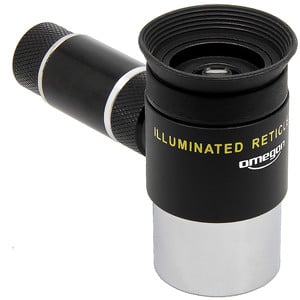

12mm Kellner cross-hair eyepiece, with illuminated double crosshair

The Omegon crosshair eyepiece is ideally suited for guiding astrophotos when used in off-axis guiders or guide scopes. The extremely fine, illuminated double crosshairs make tracking the guide star much straightforward for you. Instead of having to cover the star, as with single crosshairs, you can keep it precisely positioned in the centre of the eyepiece. Any deviation from this position is noticed immediately, and in time to be able to react.

The advantages in a nutshell

  • dimmable lighting, battery powered
  • eyepiece with clear optics for using faint guide stars
  • lens focusing - sharp focusing of the cross-threads for your vision
  • 2x LR44 batteries included

Dimmable LED lighting with battery

The cross-hairs are illuminated with red LED lighting which can be dimmed by means of a rotary switch on the side. The eyepiece has adjustable dioptre compensation in order to be able to have both the star and the cross-hairs in focus.

Photos are not everything

Discover other applications for your cross-hair eyepiece. These eyepieces can also be used measuring fields of view, for the polar alignment of a mount, or for getting the positional angles of double stars.

Perfectly tracked astronomy photos are no secret, but the result of using the right accessories

Specifications

Capacity


Focal length (mm)
12
Connection (to the telescope)
1,25"
Apparent field of view (°)
50
Coating of optical system
multiple
Number of lenses
4

Special features


Homofocal
-
Illuminated
yes
Filter thread
yes

General


Length (mm)
84
Weight (g)
117
Series
Recticle
Width (mm)
54
Height (mm)
55
Type
Eyepiece
Type of build
Reticle eyepieces

Recommended accessories

Telescope accessories (2)

Omegon aluminium case, large

$ 89.00*

*All prices include VAT plus shipping costs.

Omegon Reticle eyepieces Illuminated crosshair eyepiece, Kellner 12mm
Omegon Reticle eyepieces Illuminated crosshair eyepiece, Kellner 12mm
Omegon Reticle eyepieces Illuminated crosshair eyepiece, Kellner 12mm

Customer reviews

Very nice optics and focusable reticle, yet illuminator does not dim

Review by J. K. on 09.09.2022 23:59:12

( 3 / 5 )

The eyepiece is pretty sharp and the crosshair is focusable and very visible even without light. However, the illuminator, while controlled by a potentiometer, seems like on/off. The light is bright and obscures dim stars. Perhaps incorrectly wired, I may attempt to repair it. However, the reticle is well visible even without illumination.
