Telescope accessories > Eyepieces > Flatfield ED > Omegon Flatfield ED eyepiece 8mm 1,25''
Product no.: 18816

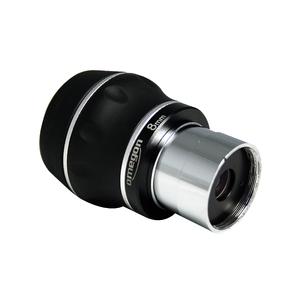

Flatfield ED eyepiece 8mm 1,25''

$ 99.00 incl. VAT, plus shipping costs
long-term
Product not available anymore + lead time

Product description

More about the series Flatfield ED...

Omegon OD Flat Field Eyepieces - combining flattened image field with high contrast


Most eyepieces suffer from image distortion at the edge of the field of view. If you move the object observed into the outer part of the field of view it becomes distorted. Omegon ED flat field eyepieces counteract this effect. Who does not want a really true to life and undistorted image?
You can get really close to this ideal with flat field eyepieces. These flat field eyepieces have an ED lens element included which gives particularly good colour purity. Their optical construction also means that these eyepieces offer extremely high contrast and sharpness, way above the usual level.

Wide field of view

With a 60° apparent field of view, these eyepieces belong to the wide angle eyepiece category. Classic 'tunnel vision' eyepieces stay more and more in the drawer. Compared to the familiar Ploessl eyepieces, ED flat field eyepieces give a field of view which is around 20% wider.
The body of the eyepiece combines up to six lens elements, producing a really high quality eyepiece. All glass/air surfaces are multi-coated, preventing unwanted reflections and guaranteeing high brilliance and transparency. You can therefore expect extraordinarily good contrast when observing planets and DSOs through these eyepieces.


Between eye and eyepiece

The eye relief with these eyepieces means they are particularly pleasant to use. There is no shadowing, even if you are not looking directly along the optical axis. These eyepieces are available in focal lengths of 25/18/15/8 and 5mm. All these focal lengths have large ocular diameter of 21mm, meaning relaxed observing is possible even at high magnifications. Omegon ED flat field eyepieces have a rigid screw-out eyecup to block scattered light. The 16mm of eye relief means these eyepieces are also suitable for spectacle wearers, as a rule allowing them to see the entire field of view. The eyepieces can be used with most telescopes without problem. Even with Newtonian telescopes with a fast aperture ratio of f/5, the edge of the field of view has good edge definition.

The advantages in a nutshell:

  • flat field optics, giving a flat field of view
  • ED element for high contrast and image colour purity
  • wide angle eyepiece with 60° field of view
  • good eye relief
  • multi-coating on all lens surfaces
  • 16mm eye relief, suitable for spectacle wearers
  • rigid, screw-out eye cups
  • 1.25“ barrel with 1.25“ filter thread

Specifications

Capacity


Focal length (mm)
8
Connection (to the telescope)
1,25"
Apparent field of view (°)
60
Eye relief (mm)
16
Coating of optical system
multiple

Special features


Adjustable eyepiece cup
yes
Filter thread
yes
inert gas charge
no

General


Series
Flatfield ED
Type
Eyepiece
Type of build
ED eyepiece
