Product no.: 33346

EQ-300 mount

$ 249.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Omegon Advanced EQ-300 - sturdy equatorial mount for up to 6kg

A stable equatorial mount is the basis for any successful astronomical observing. The Omegon EQ-300 mount has a load-bearing capacity of up to 6kg, letting you choose from many different OTAs. Perhaps you have a 150mm Newtonian telescope and also want to use your 5" refractor? The EQ-300 lets you mount anything in the small to medium-sized range of telescopes.

Equatorial design - easy to follow the stars

This mount is an equatorial design. Once aligned, the mount can track stars, planets and other astronomical objects by rotating on a single axis. The advantage is that you only have to track the telescope using that one axis, making it easier to hold objects in the field of view. So you will have hours of relaxed observing and perhaps even be able to get your entire family interested in your hobby.

Precision location of the celestial pole

As with larger mounts, the two azimuth screws and two polar elevation screws ensure quick and easy alignment on the Pole Star - letting you get on with an exciting night's observing.

Preparation for a polar finder scope

If you are interested in astrophotography, then why not equip your mount with an advanced polar finder scope. This lets you increase the mount's precision and takes your astrophotography to the next level. Long exposures (motor recommended) then become possible.

Steel tripod for more stability

This stainless steel tripod provides a much more stable base for the telescope mount compared to models made from aluminium. It is exactly this steadiness that the quality of your observing ultimately depends on. The three steel legs are additionally reinforced by a metal plate giving you a tripod that will not wobble during your observing. The metal plate also has holes provided for holding your eyepieces during your observing sessions.

The advantages in a nutshell:

  • stable equatorial mount
  • for small to medium-size telescope OTAs
  • quick-release coupling for OTAs with prism rails
  • track objects precisely using the slow-motion controls
  • with extendable stainless steel tripod - adjustable and ultra-stable
  • 4.3 kg counterweight
  • upgradable motor available for automatic tracking

Our expert comment:

Skywatcher is changing the interface on the newest version of the EQ-6 mount. You can find out here which EQMOD cable you require depending on which version of EQ-6 you have. If your mount has a DB9 interface (also known as a serial port, as found on older computers), these are the suitable EQMOD cables:

https://www.astroshop.eu/datenkabel-adapter/pierro-astro-usb-eq6-direkt-schnittstelle-fuer-skywatcher-eq6-n-eq6-orion-atlas/p,58297

https://www.astroshop.eu/datenkabel-adapter/pegasusastro-eqdir-usb-stick-fuer-skywatcher-montierungen-mit-db9/p,61892

https://www.astroshop.eu/datenkabel-adapter/ertl-elektronics-adapter-eqdir-rs232-fuer-skywatcher-eq6/p,49908

https://www.astroshop.eu/datenkabel-adapter/primalucelab-eqmod-usb-schnittstelle-fuer-skywatcher-eq-6/p,51735

If you purchased your EQ-6 recently and it has the new interface panel (along with an RJ-45 male connector, similar to the EQ-6-R or the AZ-EQ-6), the cables listed below should fit this new version of the EQ-6. However, we are still gathering information to confirm this (updated end of October 2022):

https://www.astroshop.eu/datenkabel-adapter/pierro-astro-usb-heq5-direkt-schnittstelle-fuer-skywatcher-heq5-eq8-az-eq6-az-eq5-eq6-r/p,48677

https://www.astroshop.eu/datenkabel-adapter/ertl-elektronics-adapter-eqdir-usb-fuer-skywatcher-eq-3-5-8-heq5-azeq6-eq6-r/p,49806

https://www.astroshop.eu/datenkabel-adapter/pegasusastro-eqdir-usb-stick-fuer-skywatcher-montierungen-mit-rj45/p,61889

If your mount already has a USB interface on the panel, you do not need an additional cable. Simply identify the COM port using the device manager and set the baud rate to 115200. If you are in doubt, send us a picture of your mount's interface panel by email.

Specifications

Capacity


Designation
EQ-300
Max. additional load capacity (kg)
8
Polar elevation setting (°)
0-70
Motor speeds
-
Position precision
-
Precision of tracking
-
Material of worm gear
Bronze
Material of worm wheel
Aluminium
Worm gear teeth (RA) (piece)
-
Axle bearings
Ball-bearings and plain-bearings
Counterweight(s) (piece)
1 (4,3 kg)
Diameter of counterweight bar (mm)
20
Connection manual controller
-
Interfaces
-
Cable-guide
-
Operating temperature
-30 - +40
Power supply
-
Power consumption in open circuit (mA)
-
Material of counterweights
Steel

Special features


PEC correction
-
Traveling mount
-
Size suitable for hand luggage
-
Polar axis scale
yes

Equipment


Tripod <p>
Tripod

Tripod


Stand column
-
Tripod material
Stahl

General


Colour
white
Length (mm)
-
Width (mm)
-
Height (mm)
-
Total weight (kg)
-
Series
Advanced

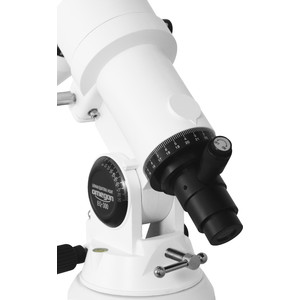

Omegon EQ-300 mount
Omegon EQ-300 mount
Omegon EQ-300 mount
